Why don't we make models of things like this?

Love your engine etc, Phil. I knew Arnold as he was a member of the Sheffield Club. Nice bloke and a character too.

Steve

This was the compressor house at Cowley until 2001 when they were replaced with boring hydrovane boxes. There were four compressors, one is not shown. The two far ones were 2 stage 3000cfm, the motors were 600hp synchronous the exciter is the small unit on the end. They were started by a brine starter which is just a big tank of salt water with electrodes in it which provided the resistance to limit starting current. The piston of the low compression stage was 3ft diameter if I remember correctly. Outside was a chiller unit to cool the air and dry it to avoid problems with valves, it was also filtered to clean oil from the air as it was used for all purposes from paint spraying to weld guns. Next door was a substation which when I was an apprentice had open busbars, very scary place. I Don't think compressed air is used on the scale it one was, assembly was just the constant shriek of windy tools. Today battery tools are more convenient with no trailing hoses or cables. The big reason for replacing the compressors was modern robot  welding guns use 12bar air and the old machines were a 6bar setup. No doubt the new ones are more efficient but these were 60-70 years old when they were retired and I doubt the replacements will last that long.

Mike

Edited By Mike Poole on 07/03/2017 21:11:41

You will know a friend of mine, Bob Potter then.

Bob was the person who I got the Uniflow engine from, Peter Southworth inherited it from Arnold and then left it to Bob, it was Peter and Arnold who were working together on the generator part of the project with a view to an article appearing in Model Engineer back in the 80's.

I have all the drawings and patterns made by Arnold and Peter, they are a work of art in themselves. I personally never knew either of them, but my dad knew Peter through making the model of "Agnes"

I hope I can do both engines justice in their memory.

Phil

I'm really glad I asked this question!

With such a pedigree I hope the Arnold Throp generator does make it into ME at last.

neil

Mike has widened the search out to compressors. Other thing that spring to mind are waterwheels and water turbines, I have seen a couple of windmill & waterwheel models.

Various types of industrial hammer are interesting (remember Dave Lamma's small spring hammer?)

Then there are machine tool models - you don't see many but they always get a lot of attention.

There was a lovely 1:12 industrial bandsaw (big enough to use!) at Bristol.

PUMA-type robots might appeal to the younger modellers.

We see very few 'engineered' RC cars, the recent 3/4 landrover and Alex du Pre's experimental car being honourable exceptions.

I have a soft spot for canal cranes, I have only modelled one but I have another two prototypes in mind.

Simple farm implements deservemore attention. Phil Haining drew up an apple scratterr(?) I like models of hand tools and suchlike, I've made a couple of model billhooks and have considered doing a set to show different types from around the country.

A model chainsaw woudl be 'interesting' as would a working scale outboard motor.

Models of large artillery pieces always fascinate me.

Then there are various bits of shipboard machinery like winches and hoists.

I could go on

Neil

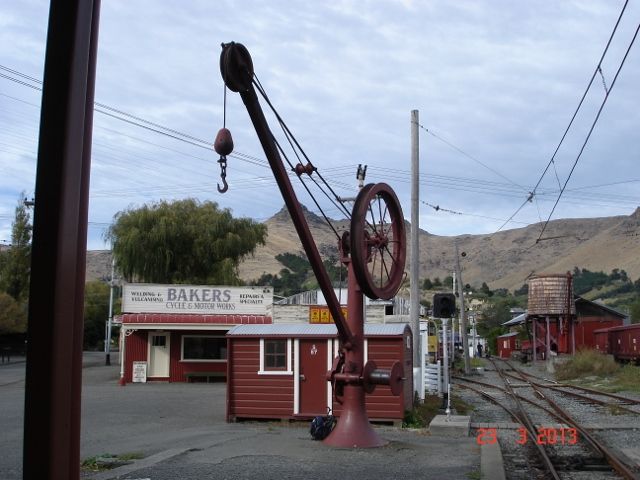

Here you are Neil, it's a railway platform crane at Ferrymede Historic Park in Christchurch NZ. It's not working, missing some parts, other bits assembled wrongly.

Ian S C

Hi Neil

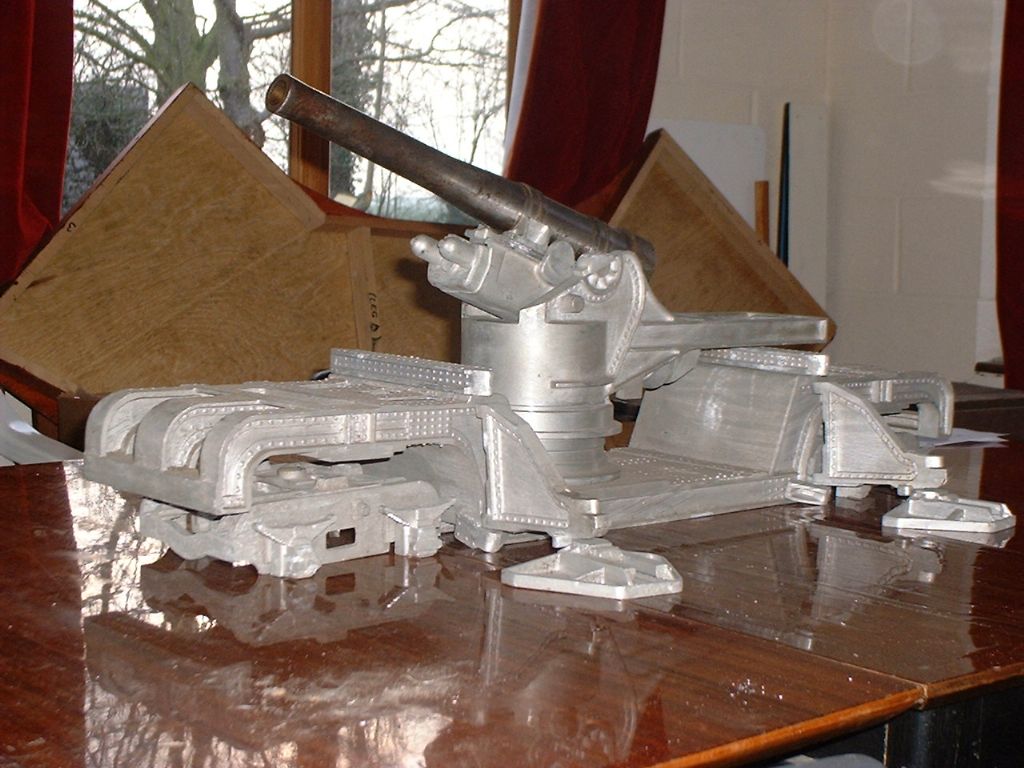

You mention artillery pieces I bought this of a dealer some time a go, its 3 1/2 inch gauge and would look good behind Southam! It is a 12inch howitzer the main components are cast aluminium, the problem is no drawings yet must try the artillery museum and no time!

Maybe not so many cars but recent years have seen a big following in models of heavy plant eg diggers and trucks. These often need a lot of "engineering"

Also worth searching for some of the large RC cars with the 1/4 scale conley V8 engines in them.

J

PS John Haining did a Scatter mill

Well spotted. In fact the author noted:

"By connecting two brass handles to the binding-screws by wires, you will get a powerful shock if you hold them while some one turns the wheel connected with the pulley; in fact, the shock is too powerful, and the person turning the wheel must be prepared to stop when the victim has had enough."

However, he does go on to describe how it will power two 6-volt, 5 candle-power bulbs. Sourcing Victorian light bulbs will be an interesting challenge. Is there a glass-blower in the house?

George

Bit like the Ingersoll Rand XL compressors where I served my time at the Chrysler factory in Australia. They ran from factory opening in 1964 up to its closure in 2008 or so. The lunch and tea break table was just to the left of the picture below. Plus four very large boilers with blowers running flat out sitting across the floor. No wonder I have hearing loss today. Never thought of it but those old L twin compressors would make the basis for a good model. They had neat little oil pumps on the side with a row of cams operating plungers with oil going up through a sight glass full of glycerine.

The Unimation PUMA was on of the first robots to use a programming language (VAL1). The mechanics are fairly primitive as backlash was reduced by meshing the gears tightly. The encoders were mounted on the end of the motor shaft and consisted of a slotted glass disc and a read head to give the A B and C channels. C was a marker to indicate one revolution of the disc. A geared potentiometer was part of the encoder assembly and a calibration routine was required to map the voltage at each marker pulse, once performed the robot could quickly find where it was. The downside of the shaft mounted encoder was that any end float in the motor shaft resulted in a broken disc this became a regular problem as there are six motors on each robot. As the discs were not a listed spare we commissioned a batch from a Swiss company at a very reasonable price. The control cabinet was another problem, the LSI 11 processor ran very hot so had a fan to cool it, fan failure resulted in most odd faults. The cards in the rest of the controller were inclined to have odd problems which very often were resolved by removing and reinserting the cards, I found that air pollution is capable of getting between the edge connector of the board and causing a faulty connection, reinserting the board cleans the connector although we usually used a soft rubber to clean the board contacts. This was actually a commonly used procedure on all sorts of equipment. The smallest PUMA we had was almost a model as it was a desktop machine we used for training. This was slightly different as it calibration was performed by putting the robot into limp mode and putting it into a precision nest. You had to remember to be supporting the arm when selecting limp or it just fell in a heap.

Mike

Edited By Mike Poole on 08/03/2017 10:59:57

I knew it was one of those damn cartwrights!

> 12inch howitzer the

Railguns - excellent subject!

> You had to remember to be supporting the arm when selecting limp or it just fell in a heap.

Awww!!!! Poor lickle wobot!

Neil

Andy Ash,

One Alexanderson alternator still exists, in Sweden, and is fired up occasionally. Google it! 17kHz, I think. I also recal that the GPO Telephones system had multifrequency alternators for use in early trunking systems. (Apologies, I don't have the proper terminology)

Geoff

At one of the WW1 centenial exhibitions in Wellington (NZ) either at Te Papa, or at the National War Memorial, there is a model of a German rail way gun, I think it is 5" gauge, and about 6ft long.

Ian S C

I have been thinking about making scale models of ancient siege engines, trebuchets **LINK** ,battering rams and associated medieval weaponry. Our ancestors were so ingenious about battering down castle walls before the advent of gunpowder. My only plan drawings are from ancient woodcuts.

Anybody else interested?

* Danny M *

I must admit I've thought about a making a model trebuchet or a ballista ever since I was a kid.

Neil.

Warwick Castle has an impressive replica Trebuchet which is fired regularly, it is apparently authentic. Having seen it a few years ago, I would not want to be on the receiving end!

I have put a link to the relevent info here. **LINK**

Neil, apparently they have a Ballista as well!

SWMBO wants me to make a waterwheel as a garden feature. Hubs and spoke slook easy enough, anyone got good ideas for rim and buckets?
