Not a waste of time Rod - it seems that these 'little things' that are obvious to the experienced user, conspire to defeat some new users.

If a sketch isn't behaving as you'd expect - it can be worth just starting a new sketch and trying again...

Oh well I have only been at it for forty years. (Acad 78 I think) Bound to get the hang of it soon!!

"I have moved the comments on other CAD packages to another thread."

Which thread would that be Neil?

Rik

The one titled "For discussing the merits of alternative 3D CAD programs."

Neil

Can someone please put me right on a question with atom3d? I have downloaded and installed the program as per MEW 274. I followed the tutorial and felt sufficiently inspired to tackle something more complicated. I drew up a crankshaft for a four cylinder engine that I'm designing. All seemed to go ok except I can't get the crank pins in the correct relative position with respect to the crank webs. The circles in sketch mode are restrained to the grid and I can't find any way to edit the centre coordinates. Nor for that matter, any of the nodes. The grid and snap to grid options are both deselected in system preferences. I've tried searching the internet without success, hence my appeal here. In essence, I want to know how to alter the properties of an individual part.

John

John,

If you have turned snaps off, just apply dimensions in the sketch to move the circle centres to wherever you wish.

You should be able to drag the circle centre to get things roughly where you want.

If more convenient, you might be able to use sketch constraints in place of (for example) zero dimensions.

Edited By David Jupp on 28/10/2018 19:50:23

John on the sketch of the crank pin what colour is the circle, red, orange or black?

David,

I'm sorry, I don't know what you mean by "apply dimensions in sketch" nor the term "constraints". They don't have the same connotations as in my current cad package. Can you elaborate a bit, please?

Jason,

The circle is black.

John

John if you go to the "sketch options" box and click "toggle sketch dimensions" it should then show the distance your circle is from the two axis. Now use the select icon and you can double click these dimensions and alter them.

The fact your circle is black means it is "fully defined" that is you have set the diameter and set its position. Snapping to grid would leave it red or orange if you had just set the diameter.

Edited By JasonB on 28/10/2018 20:36:47

John,

This video should help you understand constraints (you may not have all the constraints in the video available to you in Atom though)

There's more videos here (Don't worry Alibre was Geomagic before it was re-aquired )

https://www.youtube.com/playlist?list=PLvpFHPSB33Eegf8Rm4sHMA26ujGeBewv-

Edited By Nick Hughes on 28/10/2018 20:48:09

John,

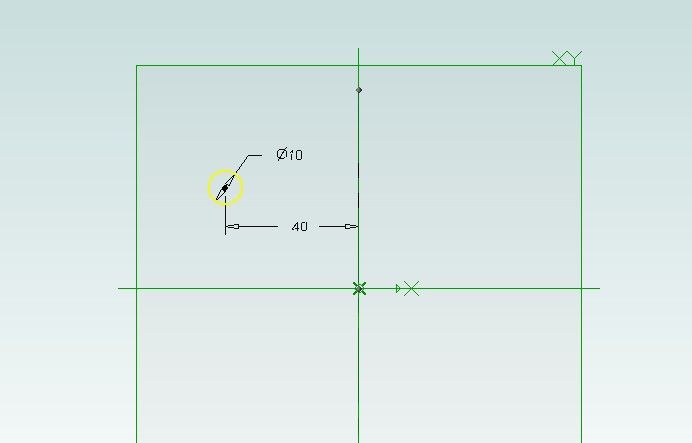

Others have at least partly covered this - this image shows where to find the dimension tool and the sketch constraints.

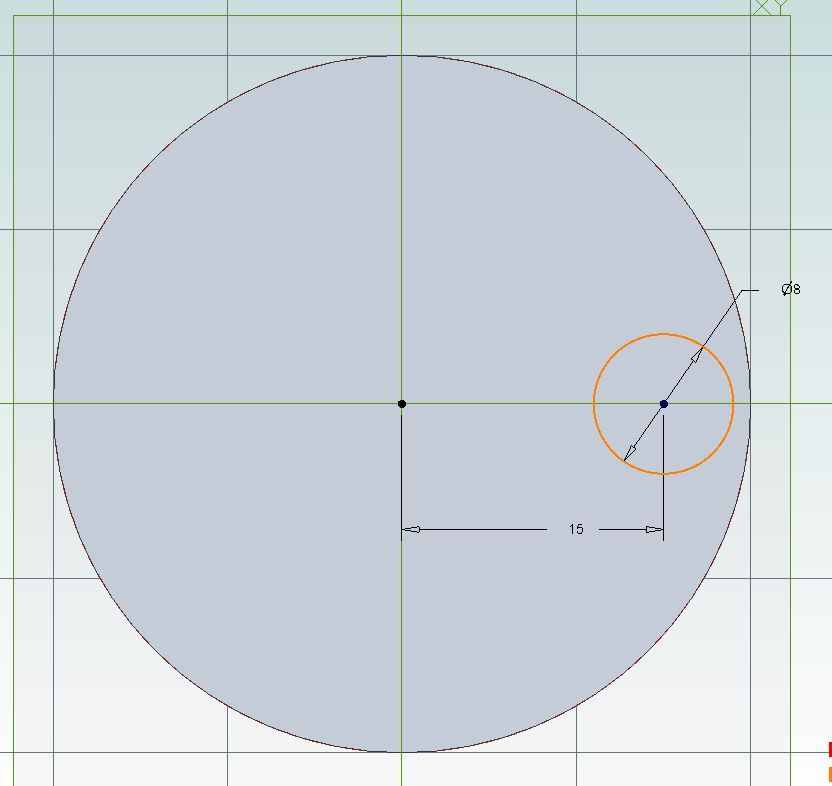

In this one I've used a dimension to fix the distance between Y axis and circle centre, by clicking on the axis, then the circle centre (with dimension tool active).

Here's my example:

I have created a rectangular crankweb, 10mm wide, then put a 5mm fillet on each corner. This makes each end a semicircle.

On the face of the web I drew a circle 7mm diameter for the crankpin.

With the 'concentric constraint' tool selected I first selected the outer curve of the web:

Once this is done, clicking the centre of the crank will move it to the centre of the outer curve.

Your problem may be that you need to be actively editing the sketch that creates the crankpin to set its position.

Jason, Nick and Dave,

Thank you so much for the leads. Quite a bit to absorb, there! I'll have to experiment tomorrow when I fire the computer up again, instead of this iPad.

John

John - as Neil points out, you have to re-enter the sketch to make changes; right click on the sketch name in the 'Design Explorer' (on left hand side of screen) - then choose 'Edit' to get back inside the sketch.

Most 3D Features are based on a Sketch, features are built up to form your Part.

Your crankshaft probably consists of several features, each with its own sketch defining the profile.

If it is a crank with round webs then draw a single web and extrude to thickness. Then use the linea pattern to give 5 equally spaced webs. Pick the inside face of the first web and draw your pin, select dimension tool and set its position from the axis

Deactivate sketch then extrude to geometry selecting the opposite face of the second web as the target. do the other pins the same positioning them at the positions you want. Finally put the shafts at either end.

Edited By JasonB on 28/10/2018 21:12:48

I have tried to use several different CAD systems in the past but my limited braincells have failed to understand them. When I saw that MEW had got a good deal on a top class CAD system and was going to do a series on it aimed as us with limited knowledge,,, plus a dedicated thread on forum, I thought that's for me. I had to buy a new computer to run this software, got it loaded and tried it. So far so good. Had a look at the thread on forum and thought "am I in the right place?" I presumed (obviously incorrectly) that this thread was to help us struggling beginners---- NO it just has stuff on it that we have no idea what is being discussed!!! I have re read the tutorial so far and still cannot follow what is being said on here. John

John all questions are welcome, it is just that some trying Atom3D have used other programs in the past and may pick things up faster than others and want to draw more than 1 part per month.

As I said earlier reading through part one can seem quite daunting, maybe if I have time I'll try and do a video of the base being drawn but will need to set the camera up better and fit it in around work.

John (C) - Try to follow the tutorial form the magazine initially. If you get stuck with that, ask here, giving as much detail as you can about where you did get to, or what instruction didn't make sense.

The tutorial starts off as list of steps to follow - as it progresses in future episodes I think more explanation will be included.

Don't be shy about asking the most basic of questions - it can be those basic operations that are not initially obvious to the new user (especially if things work a little differently from other software previously used). Your questions will also help those that are too shy to ask for themselves.

Jason, as always ever trying to be helpful on this forum! Can I suggest a better way to make videos of the use of CAD?

There are screen capture programmes that will do this for you, so no need to set up a camera to look over your shoulder. As it happens,one is available to users of Fusion 360 and is one of the ways that a F360 user is able to communicate a problem to the programme developers. It is also used to make F360 training videos. That programme is called 'Screencast' but I believe that other such programmes are available.

Swarf I have just tried the Windows one but it will not show the drop down menus etc. Anybody suggest one (free) ?

Think I have found one that works, stay tooned.

Edited By JasonB on 29/10/2018 07:48:57
