"Most probably a misnomer in this context, Bill

MichaelG."

I thought it must be, I started drafting in the mid 60s and gave it up in the late 80s and my only memory of the use of Vellum was for things like the Magna Carta and Acts of Parliament. Some of my drawings were pretty good but I don't think any of them could be categorised in the Magna Carta!!

Maybe it's a proprietary name.......

cheers

Bill

You certainly "Pounced" on that misnomer!

In the modern world 'vellum' has become a synonym for plant based tracing paper (proper quality tracing paper, not greaseproof paper we used as kids).

This is because the original quality velluim was also translucent.

Neil

Origins of vellum from the Latin word vitulinum 'made from calf'

That also means the "modern times" may not always know their etymology!

By my Chambers Dictionary, vellum is a finer grade of parchment, a writing material made from animal skin - but does add the word is also used for a material imitating it.

My kitchen cupboard holds a roll of "baking parchment" which seems no more special a material than the adjoining "greaseproof paper" named as such on its box. Perhaps it's because the former bears the name "Morrisons" .

I may be wrong but I think the first paper (plant-fibre) made in the West was based on flax, the material for linen mostly replaced by cotton.

Whether true vellum or parchment is still made, I have no idea. It may need Allergen and V warnings for book-worms....

.

How very sad

MichaelG.

.

Interpret as you wish ^^^

Edited By Michael Gilligan on 11/01/2022 14:06:57

I think I saw a news item recently saying that the last UK maker of vellum for eg Acts of Parliament was going out of business.

Hi, I have never worked from an original drawing in all my working life, in my old job the drawings were done on translucent paper with a border and an information box in the lower right hand corner, below is a photo of a small portrait one.

Once the drawing was completed and checked, it would be fed into an A0 copying machine which had a roll of Diazo paper, which was sensitive to ultra-violet light. The drawing was driven through on top of the Diazo paper under ultra-violet fluorescent tubes, which the light would only pass through onto the paper where there where no lines of the drawing and then the exposed Diazo paper would pass through an ammonia vapour which would develop the drawing, which would be used in the workshop, the original drawings been keep flat in purpose made draws in the drawing office.

I do have a couple of old drawings that were done in a similar manner I guess, this seems to be a two part copy paper where a master copy paper was made, the three photos below show a portion of a tracing from an original drawing. I don't know how the process worked, but I guess the original drawing was placed on the two part paper, the top part being translucent and the bottom one being sensitive ink, which would stick to the translucent one and produce a master copying print, which could then be copied onto a working drawing over and over again. The photo below show the translucent copy, a negative copy and a copy for the workshop. These were not made by the company I worked for, but from a company that supplied narrow gauge wagons.

The info box shows some dates when this was done.

In later years, this type was superseded by Auto CAD and ink jet printers.

Regards Nick.

Edited By Nicholas Farr on 11/01/2022 15:17:37

My Dictionaries cast light.

Dr Ure's Dictionary of Arts, Manufactures and Mines:

• Vellum is fine parchment.
• True Parchment is made from animal skins,
  • Basic writing parchment from sheep, or she-goat.
  • Vellum, a heavier grade, is made from calves, kids, and dead-born lambs.
  • drumhead parchment is made from He-goat, she-goat and wolves
  • Battledores from Ass skin. (I think he means the paddles used in glass and bread making, not the early Badminton shuttle-cock.)
• Parchment Paper starts as an unsized vegetable or rag paper, like blotting paper. After being treated carefully with Sulphuric Acid, and processes that remove all acidity the result 'undergoes a complete change.' 'The substance ... exhibits in most of it's properties so close an analogy with animal membrane, that the name adopted appears fully justified'. Invented in the 1850s.

Third Edn Shorter Oxford Dictionary allows Vellum to be made of paper as well as animal skin.

My modern Dictionary of Science and Technology simply defines Vellum as being a fine writing paper.

Pretty sure that the 'Vellum' used for technical drawing has always been Parchment Paper or similar well-made heavy writing paper, acid-free and long lasting, not animal skin. Mylar took over for technical drawing when dimensional stability is important because it resists stretching and humidity.

Dave

I think true vellum is still being made and is used to record acts of Parliment.

I just remember linen. It was treated as a curiosity in the drawing training office. We were told the best thing to do with it was to wash it in hot water to get rid of the starch and then use it as a handkerchief. You can't do that with polyester film. I doubt if you can even get polyester film now.

JA

As Neil and others have said "Vellum" is a trade name for what is basically high quality tracing paper. Probably, mainly used by artists rather than draftsmen these days. I would imagine that the only people who use tracing paper/vellum or mylar these days would be those who produce "original" drawings on a drawing board in pencil or ink. In this context an "original" drawing is a valuable commodity. In any worthwhile organisation original drawings are kept under the control of a person whose job it is to ensure that "originals" are kept safely and not allowed out of the control of the drawing office. Drawings produced on CAD only have an electronic "original". Control of issue status is a major, some would say the major factor, especially with electronic drawings.

The printing process described by Nicholas Farr is the "dyeline" process. It can be used for making prints on either specially treated paper which is opaque, or secondary masters which are transparent. These are the drawings which would issued to a workshop make something. Then there is the secondary master type of print. This uses a specially treated mylar sheet (trade name "Ozalid" ) which can be used to produce duplicate originals, which can then be modified and given a new drawing number and a new issue status. Secondary masters can be used to produce dyeline prints. No doubt that this Dyeline process has become something of a niche process with the advent of CAD, but at one time any drawing office would have a dyeline printing machine, sometimes two or three. Now of course it is possible to take an electronic original to your local office supplies shop and they can print it on a large format photocopier.

cheers

Bill

Edited By Bill Pudney on 11/01/2022 21:42:50

ps I cannot get rid of the stupid yellow winking emoji thing

Edited By Bill Pudney on 11/01/2022 21:43:59

Fixed the emoji by putting a space between " and )

The forum editor generates emojis from certain character sequences. Supposed to help, I think it's an officious nuisance!

Edited By SillyOldDuffer on 11/01/2022 22:11:39

Thank you SOD!! You are quite right ....officious nonsense!!

cheers

Bill

Vellum, as used on this side of the pond, is paper made from cotton fibers.

It can still be purchased in all sized including rolls for a plotter, and it is premium paper with a premium price.

It is similar to what money is made of, ie: you can get it wet and it will not disentigrate or deform, and will not be harmed by water if you dry it carefully.

Less expensive paper is made from wood fiber, and it will degrade and deform if exposed to water.

The vellum drafting paper is very tough, and can be purchased a little thicker than standard paper if desired.

You can erase pencil many times from vellum, and sometimes ink a few times from it, without abrading a hole in the paper.

We used vellum exclusively to create engineering drawings, both from an initial durability standpoint, and also from a long term storage standpoint. Vellum is great to work with.  I still have some of my vellum drawings from my later drafting classes in college.

The next step in the drawing elovlution I think was mylar, and we used double-side-matte finish, so it could be drawn on both sides (we sometimes did that in the day).

Mylar will last about forever, and my large clients still require all my final designs to be plotted on it.

36" x 50 yard mylar runs almost $400.00 per roll, so for me that is 75 plots, at $5.33 US per sheet.

I have projects with 100 sheets, so one must not forget to include the printing costs in the initial proposal.

In the old days of manual drafting, you had to be very careful to not burn through the top matte on mylar with the electric eraser, else you would have a bright spot where only a permanent marker could be used.

Mylar uses a special plastic eraser material.

Then came the "slick" system, which was clear plastic sheets with a photo sensitive coating.

You could create multiple copies of an architectural base plan, and distribute those drawings to all the various engineering disciplines.

A clean mylar sheet was placed over the slick, and then each discipline drew their own material on their own mylar sheet. When the architectural floorplan changed, one only had to pull out the slick, and insert a new slick.

Registration was accomplished using a "pin bar", which was a thin strip of stainless steel, about 36" long, with short pins protruding up every six inches or so.  All of the mylar sheets and the slicks had holes across the top.

Every now and then the slick registration would get off, and would cause terrible problems.

With slicks, you could also stack multiple drawings on top of each other, and print them on a vacuum printer, which was photo sensitive based printing.  This could be useful for cross-discipline coordination.

The original "blueline" prints (copies of vellum drawings) had a blue background with white lines.

When I started, they were using ammonia-developed bluelines to make copies, and the lines were blue, with a white background. The old blue background bluelines are very difficlult to read in my opinion.

With the advent of modern 2D CAD programs, which I started using in the early 1990's, we used virtual layers instead of physical slick/drawing layers.

2D CAD revolutionized how drawings were produced in the engineering world, but there were still many errors due to the fact that each view was drawn separate from all the other views.

In my opinion, 3D modeling is having a more profound affect on the engineering world than say the wheel, or fire.

3D models are interactive, and thus any change in the base model propagates immediately and automatically to every 2D drawing, with no human intervention required.

I use 3D modeling for model engines (and work projects), and I can run an engine virtually, and test for interferences.

If my 3D model is not absolutely correct, the virtual model will not run, so I know when I try new engine designs that they will run flawlessly when constructed.  There is all sorts of data that can be extracted from a virtual model, such as mass, balance, velocity, acceleration, etc., and so one can measure the vertical and horizontal forces being generated from a virtual engine that is being run, and find out how badly it will vibrate.

.

Edited By PatJ on 12/01/2022 03:24:54

Edited By PatJ on 12/01/2022 03:25:45

Edited By PatJ on 12/01/2022 03:26:32

Edited By PatJ on 12/01/2022 03:27:17

Edited By PatJ on 12/01/2022 03:28:42

Edited By PatJ on 12/01/2022 03:33:56

Edited By PatJ on 12/01/2022 03:34:56

Edited By PatJ on 12/01/2022 03:51:53

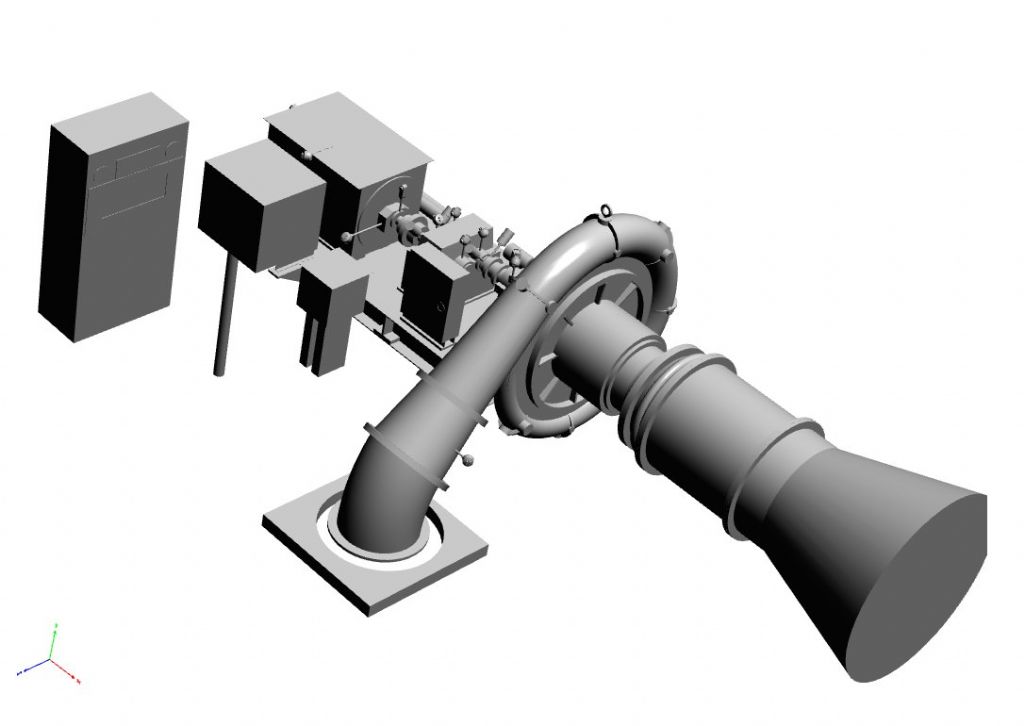

Here is a project for a wastewater system aeration blower that I did a few years ago.

1,500 hp 5KV motors. We replaced the control systems for six of these with modern PLC controls and SCADA.

I made some calipers about six feet long, and took off the measurements from one of these blowers, and put it into a 3D model.

I was able to send this model to various parties, where they could pan/tilt/zoom on the model to see all the various sensors and their location.

These days, the trend is to use a scanner, and thus what took me perhaps one day to create in 3D can be created in a couple of minutes.

Edited By PatJ on 12/01/2022 03:45:16

Edited By PatJ on 12/01/2022 03:46:12

In the old days, people would save all of their engineering drawings, and so an engineering firm would typically have a large storage room full of racks or drawers of drawings, and boxes stacked to the ceiling containing specifications (on had to watch the floor loading).

I accumuated many full sized drawing, and eventually had to begin discarding them.

I started plotting archive drawings at 1/2 size.

These days, I keep 11"x17" final plots in binders on the shelf, per project.

With 1200 dpi resolution on copy machines, you can easily read a 24"x36" drawing reduced to a 11"x17" print.

The new copy machines will copy/print/scan in 1200 dpi, and I use mine for a printer too.

I can scan directly to a PDF file on a flash drive that is plugged into the copy machine, or print from a pdf file.

The first word processor computers (IBM) that our firm had 12" diameter floppy disks (I still have one of these machines). Computers progressed to hard drives, which were prone to failure.

The computers I buy now have solid state drives (no moving parts).

I use four flash drives for work, and carry two on my keychain, each at 1TB, and they basically contain every drawing I have ever made, and every photo I have ever taken.

When I began in engineering in 1980, the only computers they had were mainframes, with line printers, and IBM punch cards. There were no screens or mice. The program we used was FORTRAN, and I still have my compiler somewhere.

When I started working in 1985, we had a mainframe with four "dumb" CRT screens (small monochrome units) and keyboards, and again used FORTRAN. Nobody got out of engineering school without at least learning FORTRAN, but I also took an assembly language class, and created assembly language programs that ran on a PDP-11 computer (a dinosaur, but a reliable computer).

The times, they have changed...........

Seems like yesterday.

.

Edited By PatJ on 12/01/2022 04:33:38

Edited By PatJ on 12/01/2022 04:34:38

Edited By PatJ on 12/01/2022 04:54:20

I have a 1200 dpi color scanner, and three 1200 dpi inkjet printers.

These days, most engineering work is paperless.

Drawings are created in CAD, and plotted to PDF files.

Specifications are also in PDF format.

When a project is bid, no physical prints are issued; everything flows to the various people via the internet and PDF files.

Generally there will be one set of printed drawings on the job site, in the contractor's job shack, used to record "as-built" changes.

The supervising contractor will have an pad type computer, and when discussing the project with him, he pulls up drawings on the screen and pans through those, which are high resolution (1200 dpi).

I refuse to "go ipad", LOL, but many have gone that route.

I carry an 11"x17" set of drawings to the job site.

I still primaryily use AutoCad to make 2D drawings, but I also use Solidworks to create 3D models.

A buddy of mine who is a mechanical engineer has used an integrated 3D building modeling system (Autodesk's version) for many years, and his 3D models appear as a part of one large model that contains all the disciplines. The 3D model can change dynamically, as people all over the country work on it in real time (in the clouds, as they say).

I am not "going BIM" either. I will retire before I do that.

BIM = building information model

BIM is a bridge too far for me.

The mandatory annual fee to run BIM software can approach $2,000.00 per person.

I use a perpetual liscense of AutoCad 2004, and it works well with 2D drawings.

For one-off 3D models, I use Solidworks 2012, which is also a perpetual license.

.

Edited By PatJ on 12/01/2022 04:50:22

One more thing about drafting vellum (made from cotton fibers).

It is translucent, and so allows blueprint copies to be made from it (not that anyone makes blueprints anymore in the modern world).

.

Lots of technical comment. The original question was along the lines of 'can these two drawings in ME be described as art?'.

In my view, yes, they are most attractive to look at and enjoyable. Are they technically imperfect, do they have flaws - yes that is inevitable as they are hand drawn to that individual's aesthetics. And that is what makes them special.

I thoroughly enjoy seeing hand drawings in ME, and equally shudder at the thought that the editor has converted many into cold, sterile, technically correct drawings.

CAD has done a great service in making dimensionally accurate drawings easily achievable, and I use it for that, but the result is cold and mechanical, and rarely beautiful.

.

Fair comment, norm

But, having never seen the drawings in question, I could only remark upon ‘Vellum”

MichaelG.

.

With many thanks to PatJ for the information.
