Total newbie question - Collet identification

Hi,

Total beginners question, but can anyone help me identify the collet below? It’s out of an old mill (unbranded / homemade?)I bought off eBay.

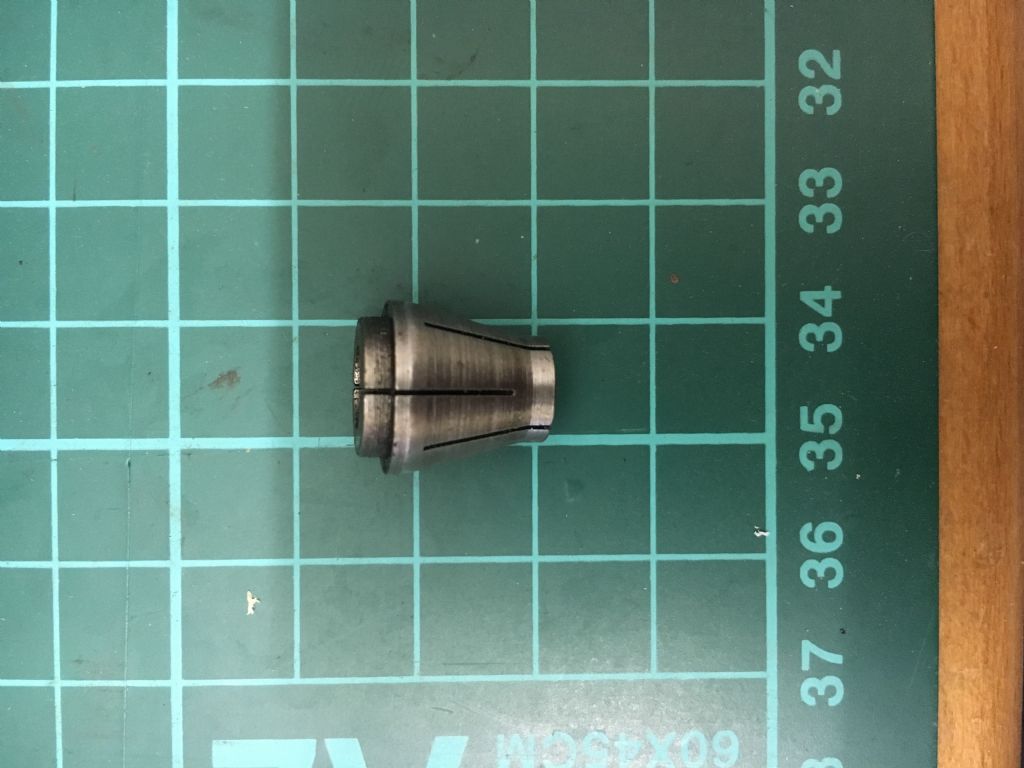

Dimensions are:

- widest point : 0.52” (13.3mm)

- ‘neck’: 0.42” (10.6mm)

- overall length: 0.57” (14.5mm)

I've only got one, so any advice as to where I can get more (UK) or a starter set would be very welcome!

Thanks in advance

Ross

Sorry, image dropped off

Welcome Ross, I'm afraid you will have to explain a bit better, I presume you have a mill. You could try googling milling collet systems, a picture will probably set you on the right track.

.

Greetings, Ross

I think you will need to look at this thread: **LINK**

https://www.model-engineer.co.uk/forums/postings.asp?th=103028&p=1

MichaelG.

Thanks; I’ll go through that and upload.

Ross,

I don't think I've seen that one before ... but you might find something similar in here: **LINK**

http://www.rotagriponline.com/datasheets/5C.pdf

[don't worry about the 5C filename, it's a full catalogue]

The problem is ... Crawford don't make the wide range of designs that they once did.

MichaelG.

Looks to be from a Marlco or similar indexing unit often used on horizontal mills, have a look here to see a set - no indexing tool though **LINK**

John

That's what I wondered, John ... but are the Marlco ones slit from both ends ?

Age-related brain fade is getting to me

MichaelG.

Taig / Peatol lathes and small mills. **LINK**

Agree with John Haine, that is Taig / Peatol available from Peatol or MEDW as they are used on the CNC micromill. I think the largest size is 1/4 dia.

.

Looks like it, John

MichaelG.

.

http://www.jeffree.co.uk/Peatol/accessories.html

Edited By Michael Gilligan on 22/06/2019 08:23:36

Ross, I sent you a PM.

I have a left over set of those collets from my old peatol - long since moved on.

Here is another type altogether - this is a 1/4" collet.:

Overall length = 27.00mm

Rear locating register diameter = 9.98mm

Any ideas what for?

Rik

Edited By Rik Shaw on 22/06/2019 10:35:08

Rik, Your collet looks if it may be for a Die Grinder Link

Mike.

Edited By MichaelR on 22/06/2019 17:02:55

Appreciate all the comments / suggestions, thanks all.

Mine looks like an older version of the Peatol mill and definitely those collets.

Nice to have such a helpful response to such a basic question.

Ross

The collet shape is very similar to the collet in my Porter Cable router.
