Identifying Collets

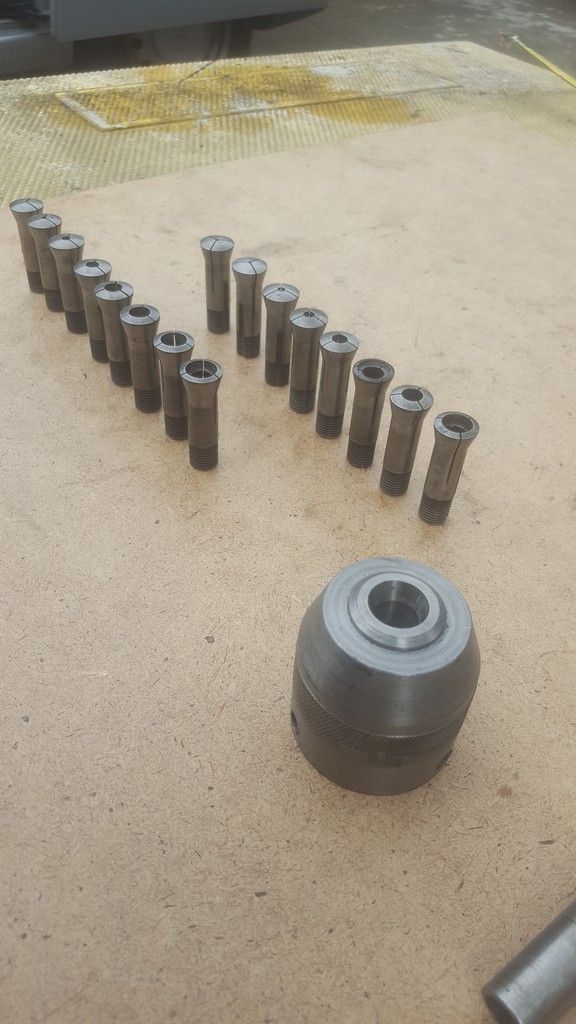

I need assistance identifying some collets, these are off a Myford Super 7 but think the chuck is modified for the job.

The collets have what looks to be an S or a 5 with and A overlaid ??

Edited By Philip D on 25/09/2018 21:30:51

Edited By Philip D on 25/09/2018 21:33:35

Edited By Philip D on 25/09/2018 21:36:25

Edited By Philip D on 25/09/2018 21:39:57

Edited By Philip D on 25/09/2018 21:41:43

Not sure if the image is showing ..??

Yes, the image is showing

Some dimensions would help though

Body diameter & thread pitch perhaps.

MichaelG.

.

'Schaublin SA' seems a likely candidate for the manufacturer, of course.

Multilingual catalogue here: http://www.schaublin.ch/app/webroot/pdf/cat/8.pdf

Edited By Michael Gilligan on 25/09/2018 22:02:09

Edited By Michael Gilligan on 25/09/2018 22:08:06

Michael, it looks like they are 12mm and .125 pitch (m12 metric fine). All imperial sizes ..i wonder if they are european ?

Well if the 'A' could also be a 'V' (seen from the other side), then it would be Schaublin. Possibly W20?

Regards, Hans

I think after a few mins on a search engine that they are W20 Schaublin thank you Michael and Hans

Edited By Philip D on 25/09/2018 22:09:16

.

For clarity: SA is part of the company name, rather than a particular collet type

http://www.schaublin.ch/pages/history

MichaelG.

Edited By Michael Gilligan on 25/09/2018 22:14:10

.

Lucky Man ... It doesn't get much better than that.

Trademark info. here: **LINK**

http://anglo-swiss-tools.co.uk/schaublin/

So, it is a 'V' ... I bow to your wisdom, Hans.

MichaelG.

Is anyone able to identify this collet for me ?

Regards

.

Not much hope without some dimensions

[except to say that it looks 'dead length rather than 'draw-in]

MichaelG.

So measurement for my collet.

Overall length 2”

OD at the base 13/16”

Bore 1/2”

OD top of taper 1 1/8

So measurement for my collet.

Overall length 2”

OD at the base 13/16”

Bore 1/2”

OD top of taper 1 1/8

Ian,

Feel free to browse through this Album : **LINK**

https://www.model-engineer.co.uk/albums/member_album.asp?a=39260

Martin Connelly kindly provided the scans, and I converted them to jpg to make them viewable here.

MichaelG.

Ian, it looks like a collet from a Marlco indexer used extensively on milling machines in the 1960's and earlier for sure. John

Edit = add image address -- maybe ????

http://www.gandmtools.co.uk/wp-content/uploads/2017/01/DSCN7470-477x469.jpg

Edited By JohnF on 08/01/2019 21:05:41

Philip I think they may be Boxford, have a look on www.lathes.co.uk for Boxford lathe accessories and look at the collets, they are a small version of 5C collets -- can't recall the number ??? I had a set some time back from a machine that was scrapped where I worked, always intended to "do something" with them but flogged them on the well known site - had them maybe 50 years in the store !

John
