hi,

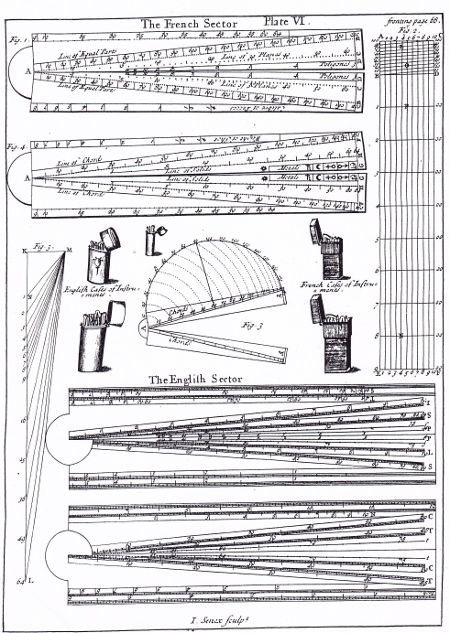

French & English sector (the ancestor of computer)

pm

Thanks guy's

Shared knowledge is better

p-mick

hi,

The reamer is called " alesoir a main facon paris" (hand reamer paris style)

Advantages are better finnish & lower tolerance possible (H7,H6&hellip

http://www.magafor.com/article.php?grp=822&famille=675

p-mick

Hi,

See ME 17jul1970

Lathe planing adapter by LC Mason

P

Hi,

The rolls-Royce of tools:

Snap-on Box ratched (1/4x5/16)

pm

Andrew,

and for metric thread

20, 21, 21, 25, 30, 35, 40, 45, 50, 55, 60, 65, 70, 75

p-mick

Cleeve,

Harold hall site

http://homews.co.uk/page30.html

brgds

pierre

Hi,

The ML7 was built with an 5/8" LS until Apr73 (sn:K111727) and the S7 use a 3/4" LS.

Both machine using the same Gbx, an adaptation muss be available.

pm

Hi,

Carbide brazing process explained here

21-jan-2013

Read "Popular mechanics oct 1952"

http://books.google.fr/books?id=jdwDAAAAMBAJ&pg=PA211&lpg=PA81&ots=KUR9lUj5EQ&dq=popular+mechanics+oct+1952&hl=fr

pierre

Hi,

a good explanation here:

http://swarfer.co.za/lathe/backgear.php

pierre

Hi,

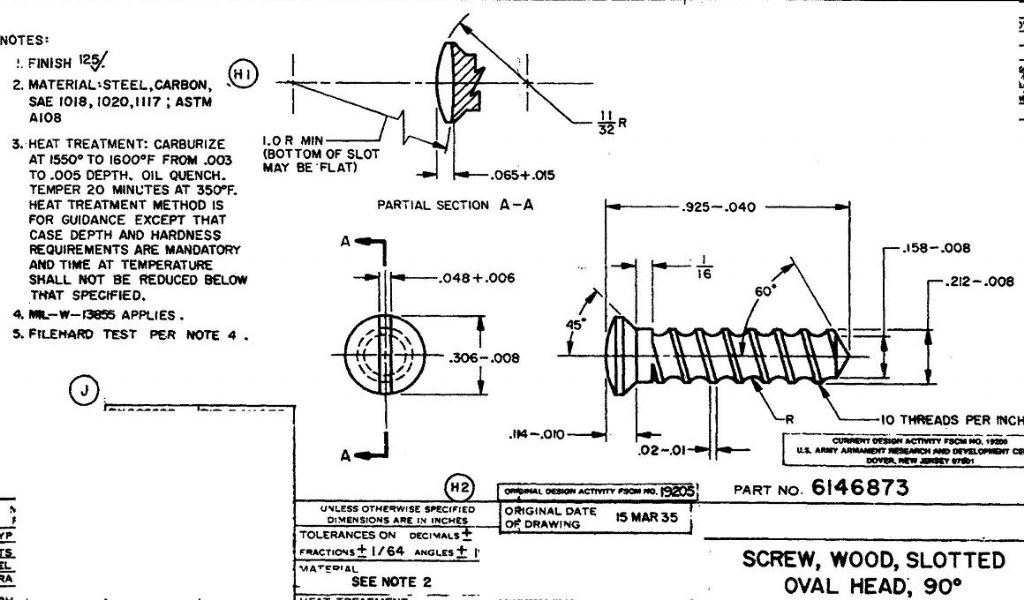

The drawing is from a russian blog talking a bout USM1/Garant Carbine

This was also my first wood-screw drawing

pierre

Edited By pierre ehly 2 on 28/02/2013 22:03:39

Hi,

Read "Popular mechanics oct 1952"

http://books.google.fr/books?id=jdwDAAAAMBAJ&pg=PA211&lpg=PA81&ots=KUR9lUj5EQ&dq=popular+mechanics+oct+1952&hl=fr

pierre

Simon,

use a 1ft of clear plastic tubing (windshield cleanner nozzle)

Push it over the oil nipple and maitain it with the hand (the oil pressure push it out)

d'ont forget to oil the back gear mechanism (2 points)

pierre

Hi joylon,

The ML7 manual say

640 Rpm ( 1"7/8 pulley & 1450 Rpm motor)

870 Rpm (2"1/2 pulley & 1450 Rpm motor)

1070 Rpm (2"1/2 pulley & 1750 Rpm motor/ 60hz)

This higher value is the max safe Rpm, old babbit bearing manual say

100 meter/minute (330ft) linear speed is max , with heat contol (hand touch)

The probleme is less modern lubricant than heat evacuation.

Certainly too much modication for the benefit

brgds

pierre

Kevin,

http://www.usinages.com/manuels-documentations-machines-outils-disponibles/index-des-documentations-machines-outils-accessoires-t25730.html

Scroll down to "Myford" then dowload :

1 _" Myford pignonnerie" an explanation of change gears for Series 7 lathes + ML10

2_"Myford ML4 manual" a succint manual for the ML4 with a threading chart a the end

For the set-up remove all gears, then start from the lead-screw, inserting a strip of copy

paper between the gear teeth (remove prior use).

brgds

pierre

hi kevin,

Have a look here: (ML7 apron IPC, similar to ML4)

http://www.myford.co.uk/acatalog/Myford_ML7_Apron_Assembly.html

The play is the play from the gears & rack assy, for precise move, use

top slide or lead screw & graduated hand wheel.

No idea for the gearbox installation (depend on your skill)

Hemingway kit is selling plans & kit for a ML7/S7/ML10 Gbx,

this plans contain certainly installation instructions

pierre

(owner of ML7 sn K37512)

hi James,

An good explanation by david of the ML7 back-gear here:

http://iwr.ru.ac.za/~iwdf/lathe/backgear.html

The pulley is certainly sized by lack of lube,

another common problem is a separation of the pulley and is gear (press-fitted)

Further dismantling will requiring a Press

pierre

Hi martin,

look here (at bottom of page 1) Metric conversion set 1481

www.usinages.com/.../confirmation-donnee-notice-boite-avance-myf...

or at quick change gearbox manual BA section (select 0-BA)

pierre

Hi,

Look here @ usinages.com (french forum about chips making)

http://www.usinages.com/tours/mon-premier-tour-myford-t8648.html

My answer( p-mick) is just below the 2 top pictures and contain 2 files

S7 built-datas.xls & S7- belt-change.pdf

pm
