Steam Hammer identification

All Topics | Latest Posts

Search for:  in Thread Title in
Neil Brodie 111/09/2019 12:45:25
3 forum posts
7 photos

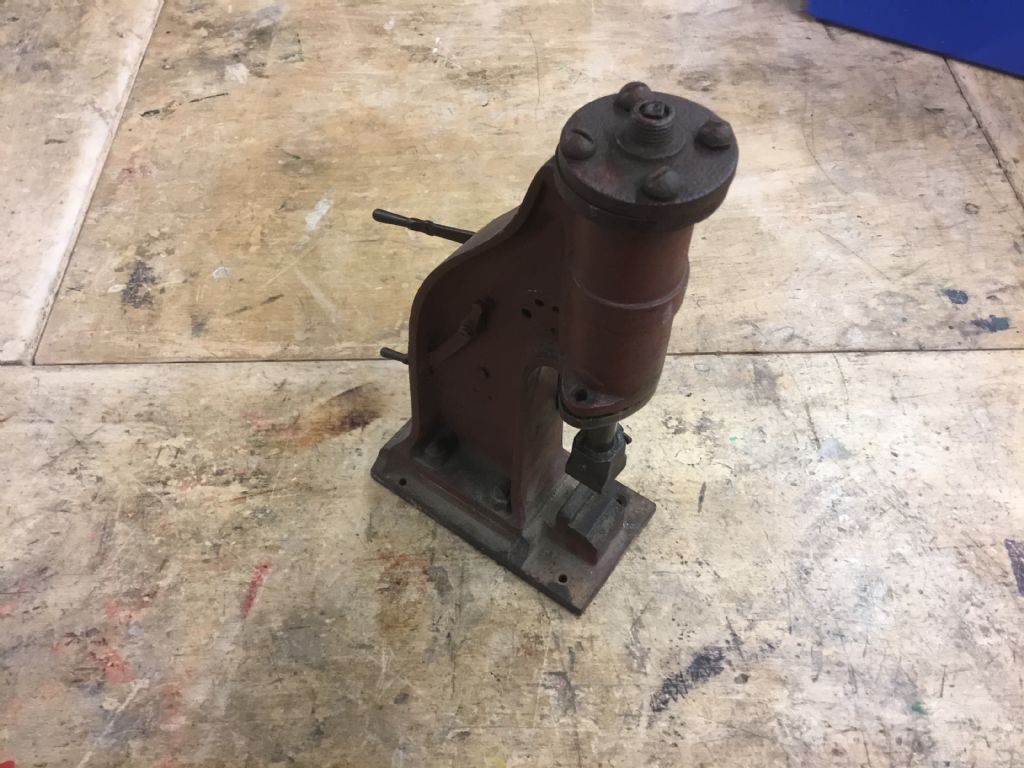

b5c885cc-8c0d-45ac-8197-7afb3f90e5b8.jpeg611b1dc0-314d-439e-b886-8960302f3fec.jpegI was clearing a room in my school (I’m a DT teacher) and came across this steam hammer.

anyone able to help me identify it?

Thanks,


Former Member11/09/2019 15:37:19
1329 forum posts

[This posting has been removed]

JasonB11/09/2019 15:48:07
avatar
25215 forum posts
3105 photos
1 articles

Can probably rule out Stuart, Breisch, Brunell and Reeves as it does not look like any of those, I think there is another American kit but can't recall who did it.

Neil Brodie 111/09/2019 17:59:16
3 forum posts
7 photos

Thanks guys, I’ll get some measurements up tomorrow when I’m back at work.

Neil Wyatt11/09/2019 20:37:28
avatar
19226 forum posts
749 photos
86 articles

Interesting model.

Watch your fingers...

Neil

Michael Gilligan11/09/2019 22:41:24
avatar
23121 forum posts
1360 photos

Just what Duncan needs !!

**LINK**

https://www.model-engineer.co.uk/forums/postings.asp?th=144608&p=1

MichaelG.

Michael Gilligan12/09/2019 07:32:47
avatar
23121 forum posts
1360 photos

Sorry to drift off-topic, but I've just found this : **LINK** which might be of general interest.

https://www.akg-images.com/archive/The-first-steam-hammer--constructed-by-James-Nasmyth-2UMEBMYBEBDHA.html

I have, of course, seen formal illustrations of Nasmyth's hammer before ... but this is his sketch.

MichaelG.

Neil Brodie 112/09/2019 08:37:05
3 forum posts
7 photos

A few more photos showing sizes. Thanks for all the input so far.

Neil

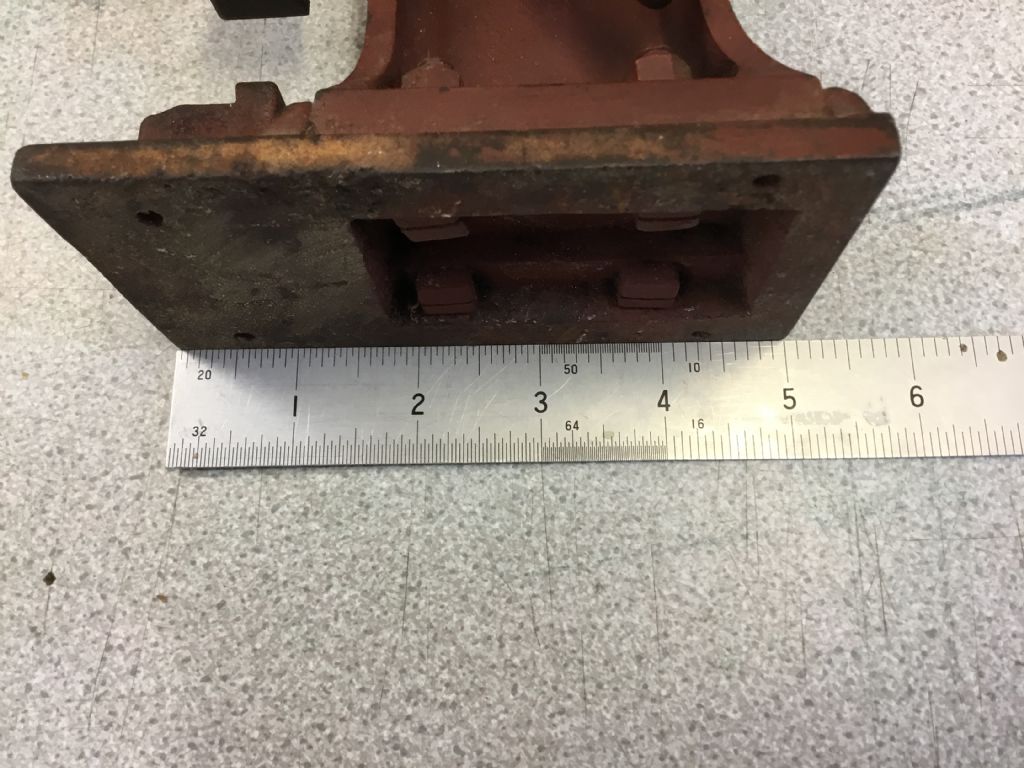

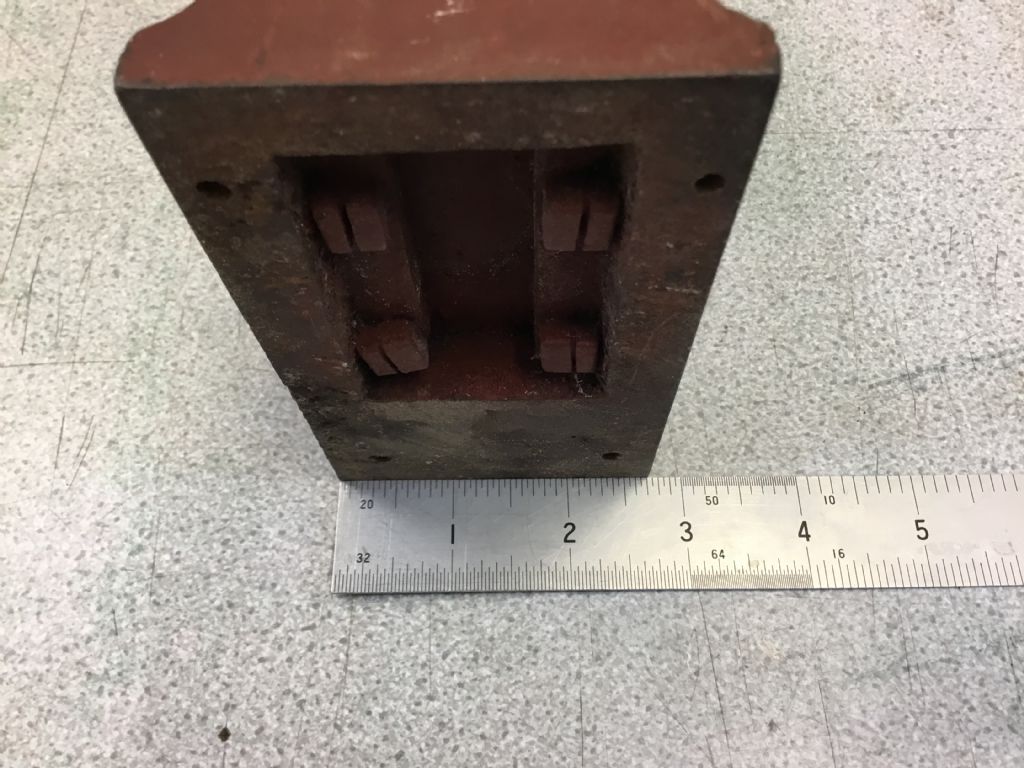

Base width

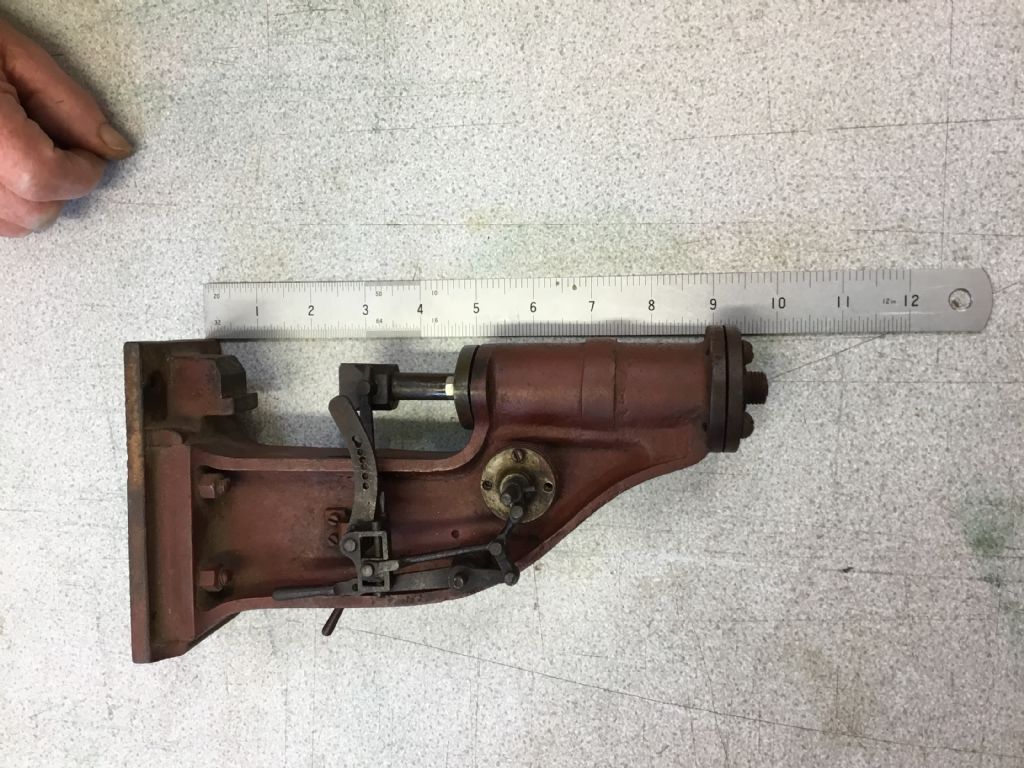

Windy handleHeightBase length

JasonB12/09/2019 08:58:49
avatar
25215 forum posts
3105 photos
1 articles

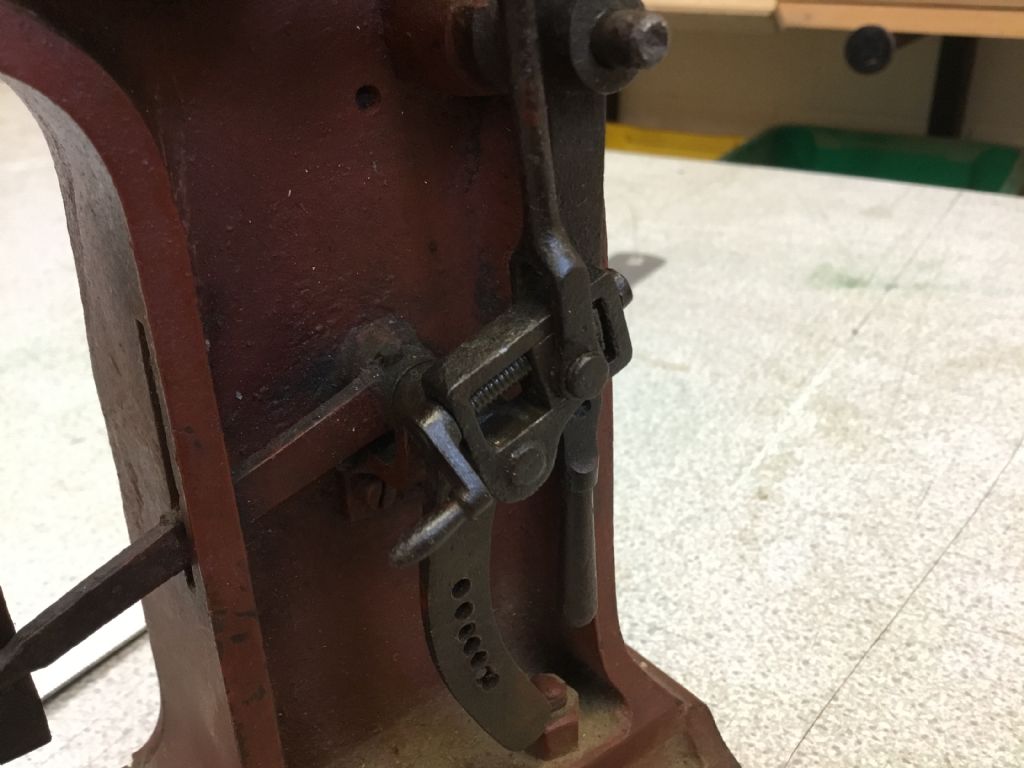

It's a good size more like the Breisch one with some nice detail in the fine adjustment for the hammer stroke.

There have been several designs for steam hammers published looking through the index so it may well be based on one of those but my collection of mags does not go back to the very early ones. At that time the maker would more than likely made their own pattern and easily found a local foundry to cast the parts.

Brian H12/09/2019 09:05:11
avatar
2312 forum posts
112 photos

Please replace the roundhead screws with studs on nuts or at least hex screws.

Brian

Nick Clarke 312/09/2019 16:22:07
avatar
1607 forum posts
69 photos
Posted by JasonB on 12/09/2019 08:58:49:

It's a good size more like the Breisch one with some nice detail in the fine adjustment for the hammer stroke.

There have been several designs for steam hammers published looking through the index so it may well be based on one of those but my collection of mags does not go back to the very early ones. At that time the maker would more than likely made their own pattern and easily found a local foundry to cast the parts.

LBSC as one of his 'Make a steam toy for the kids at Christmas' models gave a freelance design for a simple steam hammer to use as a nut cracker - sometime in the fifties.

After the sherries and brandies etc I can see a queue at A&E forming - Good job there were no breathalisers in those days!

Bazyle12/09/2019 17:27:35
avatar
6956 forum posts
229 photos
Posted by Brian H on 12/09/2019 09:05:11:

Please replace the roundhead screws with studs on nuts or at least hex screws.

Brian

No. Unless this is a scale model of a know full size one. The roundhead screws are part of the original 'as made' design of a model and is of its time and form part of the charm and value.
