All bridgeports and clones motors have to run in reverse when in low gear... You would have thought than an idler somewhere would have been cheaper than the switch gear; but that's how they are...

When I was apprentice, late 1970's, Ozalid was the name of one of the two drawing print processes we used (pre CAD)

Ozalids used chemical impregnated paper, UV light and developed with ammonia. Smelt like Cat Pee, so most preferred semi dry prints which used a chemical to print and then dried (or burnt) the print at the end of the printing process.... sat next to the office print machine for a while, got some practice with the fire extinguisher when people were not paying attention

typical (american) ozalid machine pics here...

It's likely that they also made drawing and chart plotting equipment, your items look like a good way to meausre and bearing and distances on maps and charts.

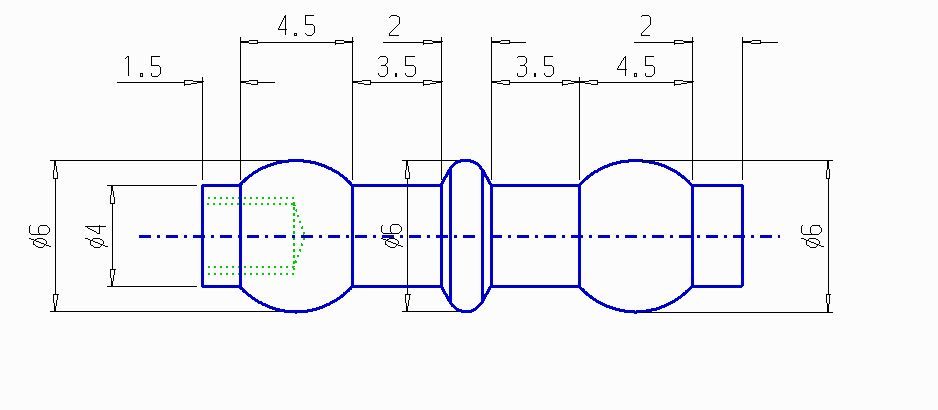

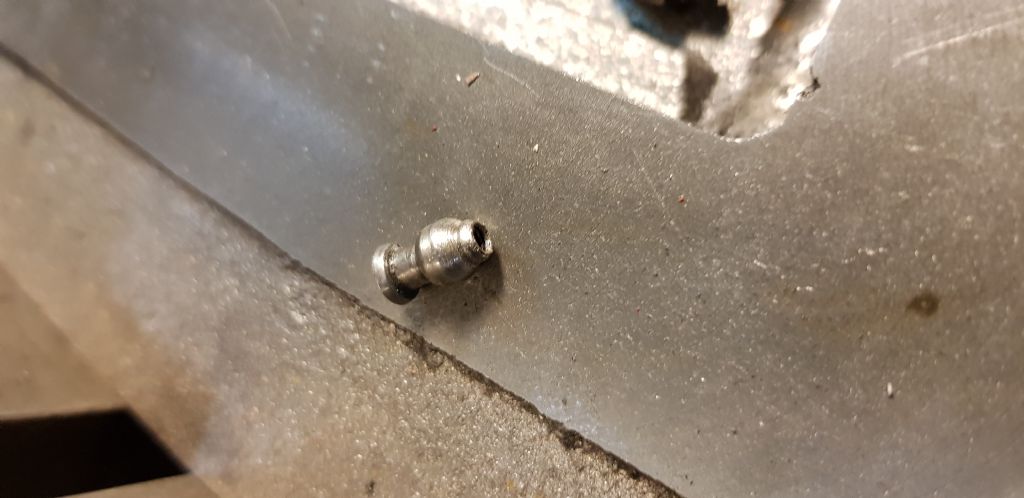

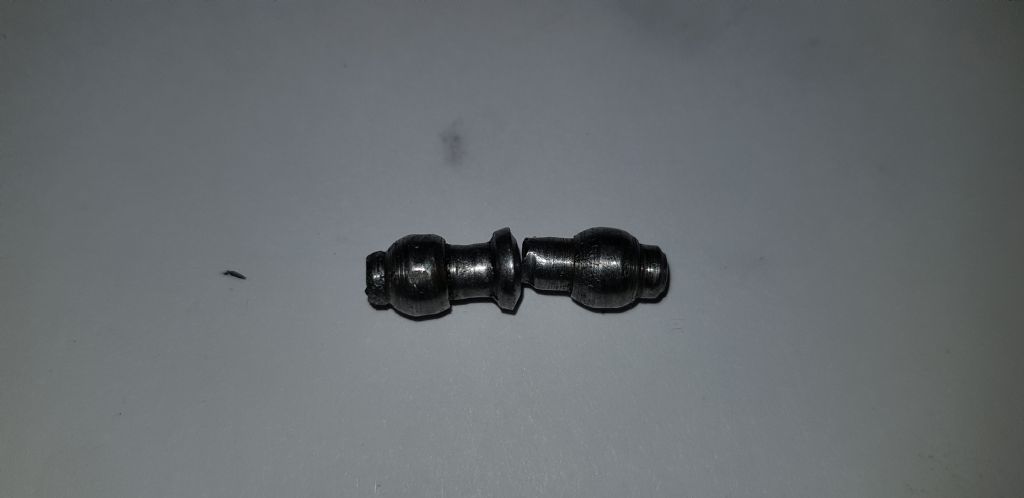

After considerable faffing about I got the other part of the toggle out using a 4mm dia magnet... The depth stop rod fell out and I was able to remove the eye that bolts into the quill. Photo and Sketch below... dims are approximate it's fairly mangled (not all by me!)



48 hours later I've got the spindle out; using Plus gas inserted through the hole in the quill and a M12 threaded rod with a tube on the bottom of the quill as a puller... It was stupidly tight, but I got it out without damaging anything... The video says " a gentle tap with a brass drift"

New bearings ordered and need new thread on the nose piece, more pratical now I can properly measure the thread inside the quill.

Mark

Edited By Mark Simpson 1 on 25/08/2021 11:15:50

Thank you Michael and Gray...

Now I know what it's called,I've worked out what it does... It trips the feed if you drive it to the top...
The short pin is pushed up by the eye attached to the quill, and the toggle pushes the screwed rod down to trip the feed... (it's a toggle to reverse the direction...)

I've got about 1/2 of it out, after a lot of faffing with some ground down mosquito forceps...
I still can't get the rod out because the last bit of the toggle still jams it, got a 4mm Neodium magnet rod coming on Monday which hopefully will get it...

Michael, the nose piece has been butchered, prior to my ownership, and it seems was held in with araldite and the grub screw. I've built up the thread (looks like M74x1.25) with silicon bronze and will attempt to cut a new thread.

The spindle assembly (sadly) shows no sign of movement, but will keep trying...

I need to get the spindle bearing assembly out of my quill to nip up (or replace) the bearings... It's similar to a Bridgeport but always some slight differences..

I need to remove the depth stop rod, because the socapex securing the depth stop eye into the quill also secures the top of the spindle assembly.

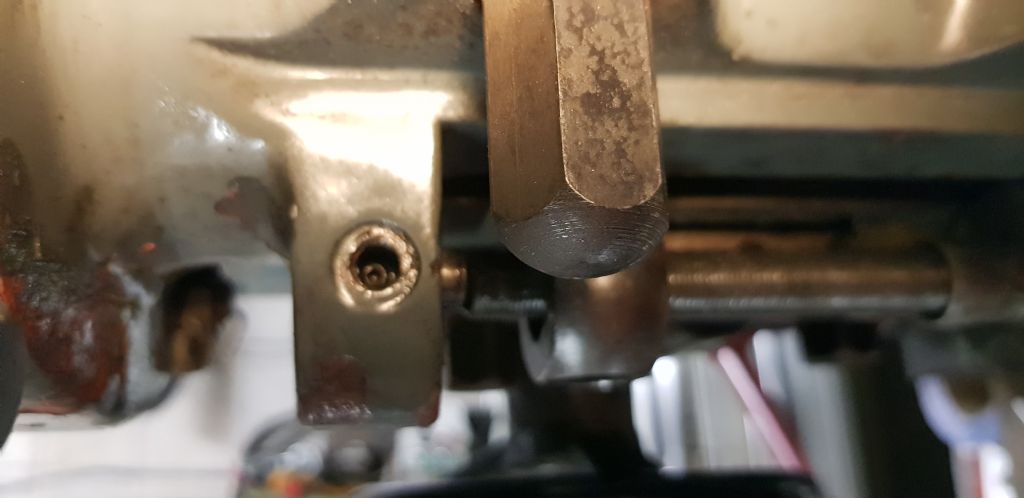

I have the lever of the bottom of the depth rod easily, but can't work out what the widget is at the top? (and then how to extract it)

Anyone ever dismantled one?

Hi Robin

I'm sure you will try all of the above things (first) and hopefully find the culprit.

I recently had a similar problem, which eventually was the motor having lost a winding or two (but still running).
1.5Kw Single phase cap start / cap run chinese motor.
Once Cap was blown, but replacing it and the motor bearings didn't fix the problem

New motor (I went 3 phase and VFD) and it's much quieter, more grunt at low sped and silky smooth

The motor was loud/grumbly since new, but gradually got a lot worse....

Good Luck
Mark
