This may be of interest, It is the technique I use on my Chipmaster for a VFD conversion.
My lathe has the original 1963 motor which cannot be wired for 240V (or at least not without digging into windings for star point). There is some loss of power, but it is fine for hobby use.

**LINK**

When I was a lad, I grew up on a farm. In those days a bonfire was the standard way of dealing with waste. My father asked me to dispose of a sack from the dairy. On the fire it went. A couple of minutes later there was a bang and an aerosol whizzed past my ear very fast and very close. My dad was mortified and very apologetic that he forgot that he had put it in the rubbish sack. It could have been very nasty.

I would also say tacho generator and aviation related. Evershed were acquired in 1965, so it is older than that.

The part number does show up on google with FBRT1051015 as an associated part, bit no real detail other than hits on aviation part sourcing websites.

A search on ebay for "evershed tacho generator" does bring back some more modern variants

My money would be on the converter not having enough oompf. The "phantom" 3rd phase approach of thesedevices is not ideal.

Also if it as not been run for a while, ltet it warm up for a while before trying the top speeds. It may need the oil needs warming up. When I first got my Chipmaster it wouldn't go a full pelt (3000 rpm).
There is not much that can go wrong in an induction motor, so I expect the motor is OK

Check your minimum and maximum speed settings in the VFD config

I work for a US software company. There is currently a debate going around regarding the terms whitelist and blacklist. These are industry standard terms for inclusion or exclusion of objects. However there is a concern amongst some that the terms are no longer PC. Given how much other work we need to to keep our product ahead of the market, it's certainly not got to the top of the list.

+1 on Robert's comments. I have an Electronic engineering background but knew nothing about VFDs, when I was looking to convert my Chipmaster. I got great service, advice and a safe, quality product from Inverter Drive Supermarket. I was happy to pay a bit extra for this benefit.

I suspect you may have several issues here, but I would agree with Clive, you may be on a hding to nothing with the static converter. If the pseudo third phase is not up and running and the control gear is connected to that phase, the contactor coil will never get energised. It might be worth swapping around a couple of the phases on the input to see if you can get the control gear energised. I also don't like the look of some of the old switch gear. The main contactor looks well past its sell by date. Poking around 415v if you don't know what you are doing is a dangerous sport. If you could get someone in with Electrical knowledge it would help.

For my Chipmaster, I went down the VFD route. I reused the existing forward/reverse lever and switch for the low voltage VFD control circuit.

If you check the VFD manual it is pretty simple, most will have a quickstart guide that should have enough info.
Below is what I did for my Chipmaster with an Emerson Commander. I didn't implement jog functionality.

See **LINK**

Will tell you everything you need from the part number

That's a shame but probably a symptom of the age of the unit. I would make sure everything is seated firmly and give the cables a wiggle. Other than that it is probably time to cut your losses and get a new console. Machine DRO offer adapter cables for Mitutoyo scales, to connect into current products. They do recommend speaking to them for compatibility.

We are struggling with some lack of clarity from the OP. We just need to know whether the fault lies with scale/cable, amplifier module or display/chassis. Simple swapping of components, should isolate this easily.

Having the modular amplifiers should help in diagnosing the location of the fault.
I suspect that you should be able to just swap the ampliifiers between slots.

So take one scale input (you know these are good) plug into each amplifier in turn. Then swap the amplifier modules between slots ans see if the fault stays with the slot or moves with the amplifier.

While you are at it, it would be worth reseating the connectors from the back panel to the PCB and also give the edge connector a clean

Thanks, lathe is now significantly quieter running.

All done, Ended up buying M10 metric mounts as UNC were not easy to find. Made up some studs to adapt the thread.

Edited By Stuart Bridger on 16/11/2019 15:20:19

Started the mount replacement tonight, you can see what state the old ones were in.

Once I had scraped the rmains of the rubber off, they unscrewed easily with water pump pliers

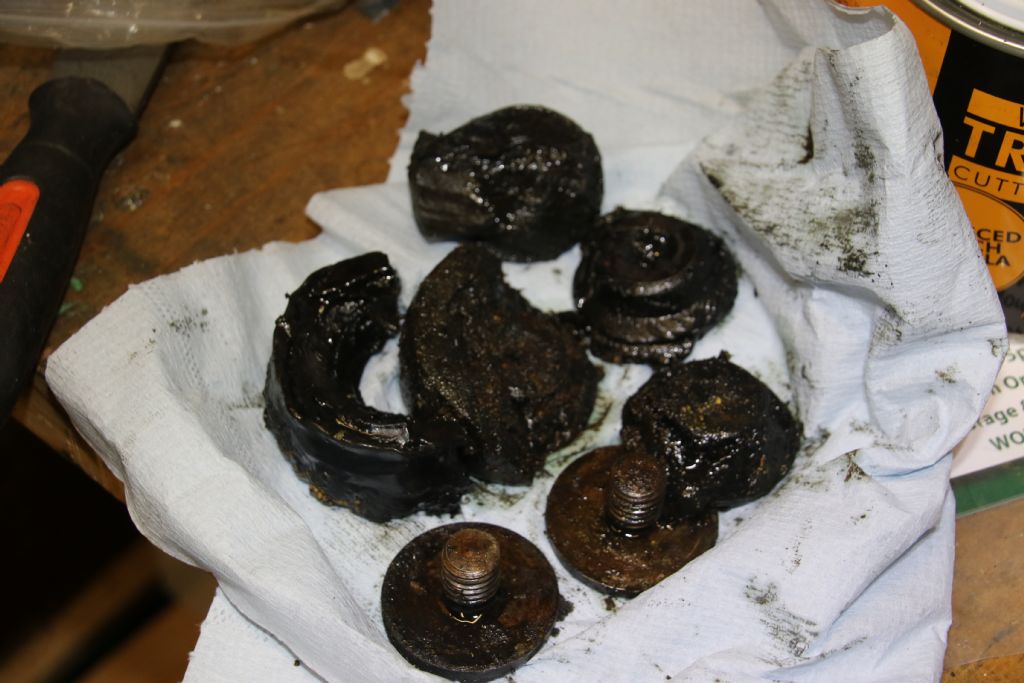

What was left

Replacement was well overdue!
New mounts will wait for another session.

Edited By Stuart Bridger on 06/11/2019 21:32:07

As well as backing up the existing system, I would recommend not powering off. Most failures tend to occur at startup.

I wouldn't bother replacing a drive on a nine year old machine. CPU and memory technology has moved on and the software has got bloated to match. Also other components will be deteriorating Personally I use Dell both for work laptop and desktop style home PC.

I agree, I wouldn't be without a DRO on the mill, but quite happy without on the lathe. I can see the benefits, but not top of the list.

I started my career in industry, one of an intake of eighty apprentices. While machine tool safety was heavily drummed in. The biggest focus was on road safety. We had lecture from Surrey Police before we got anywhere near a lathe and were bluntly told that after 4 years one of us would be killed on a motorcycle. They were right. So my point is it is all about understanding and minimizing risk. As home shop machinists, we are 100% responsible for our own safety and none of us wants to get injured. Appropriate guarding is part of that. By far the most dangerous piece of kit in my workshop is a chainsaw. For which I undertook formal training and wouldn't dream of using without full PPE, because I understand the risks.
