Myford multi stop missing bit

Hi all,

Help if possible?

My engineering buddy passed away a few months ago and with some of the bits he left me is the Myford multi stop but search as I have many times a piece is still nowhere to be seen. The bit in question is the rectangular piece of cast that bolts onto the back of the bed, looking at photos I would guess around 6in long by 1in square with a T slot down the length of it, if anyone could help with a good photo and some measurements so I could make one out of solid stock etc I would be really grateful as I am trying to use and get working the items so I can make something with them in his memory.

Many thanks Matthew

Edited By matt sw on 16/06/2014 12:36:41

Hi Matthew

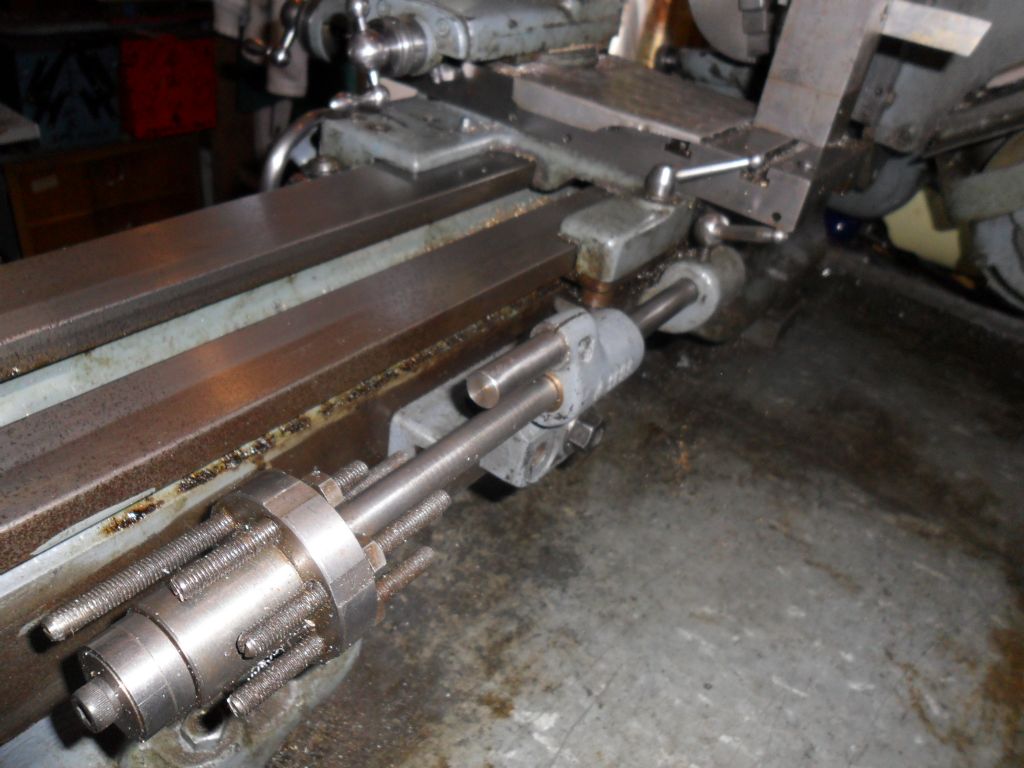

Here is a photo the part you are missing you can just see it in this photo . I can post details measurement later. Regards Nobby

Edited By Nobby on 16/06/2014 13:18:04

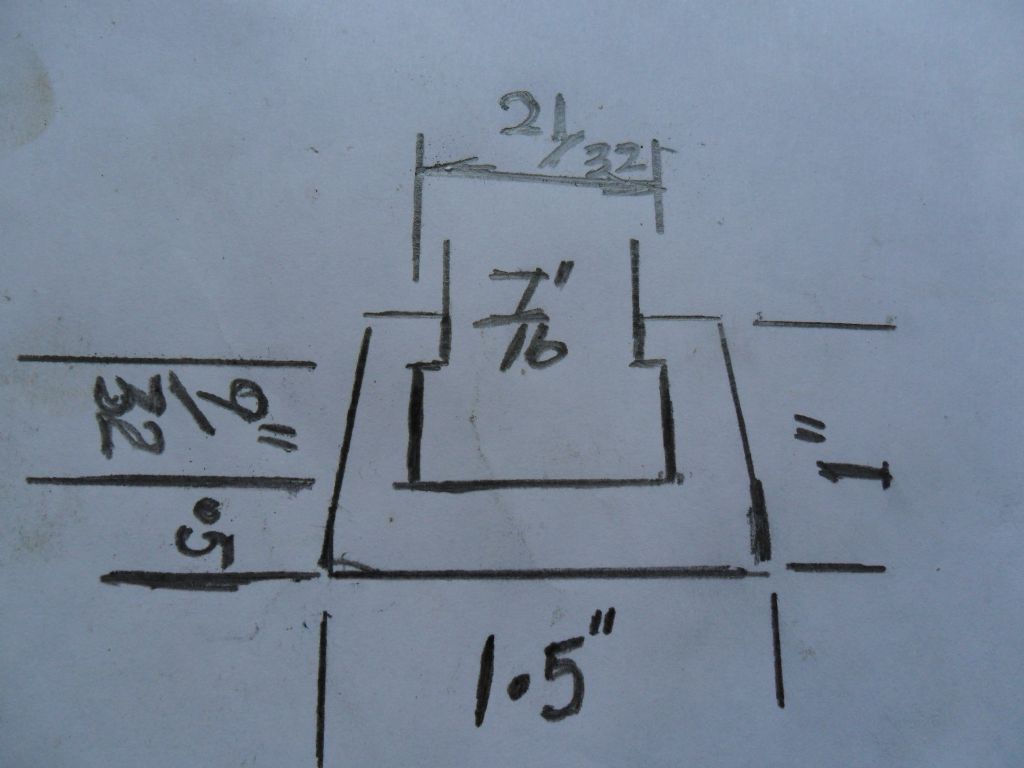

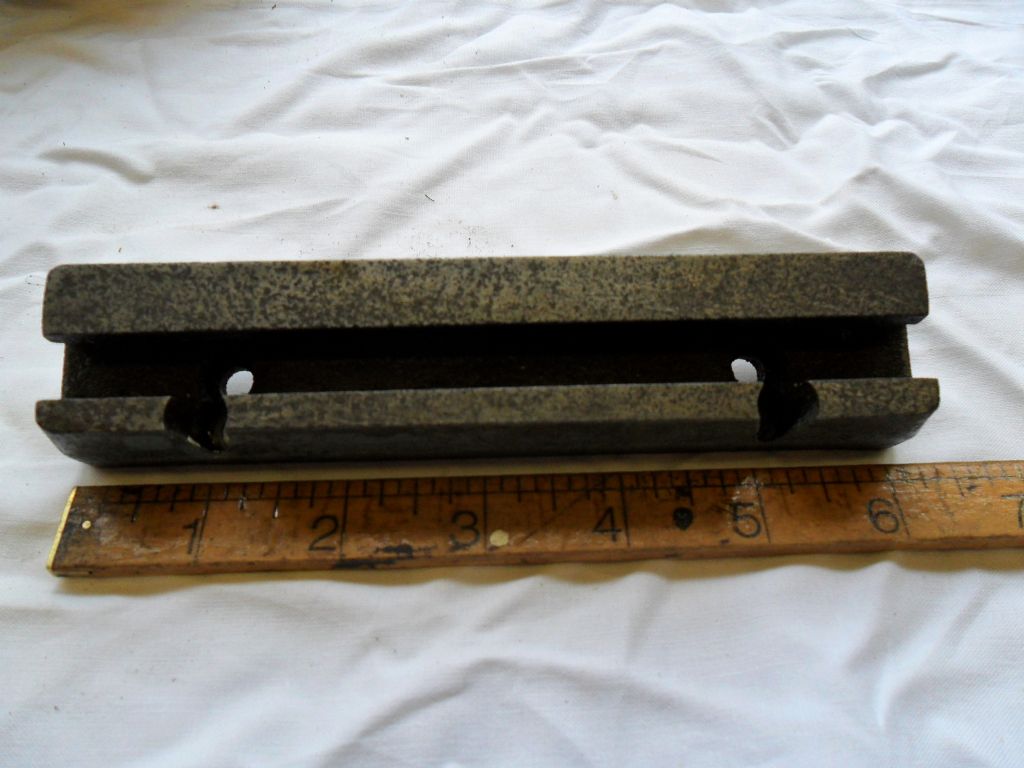

here we go Matthew Overall Length 6&5/16" hole ctrs. 3&15/16" hole to suit 1/4" whit Mtrl. Cast iron

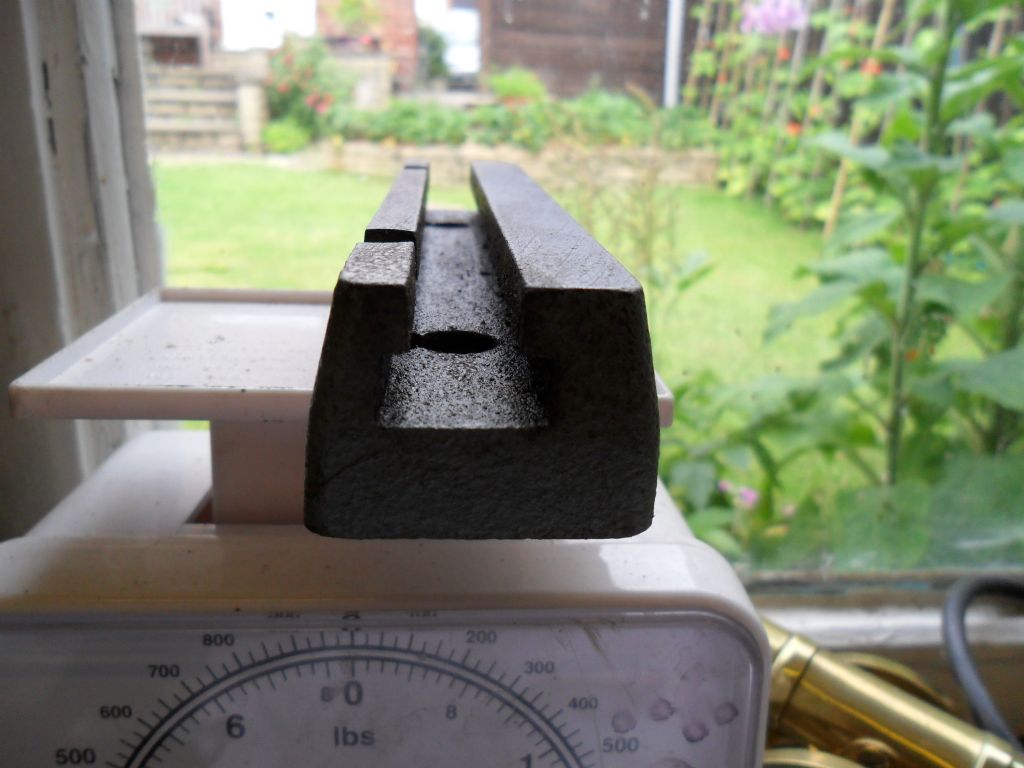

Another photo showing parts can be seen "here"

Thanks guys, that's brilliant Nobby, I really appreciate you doing that, I even know what it weighs to!

Once I have sorted a bit more of his stuff I will get on with making one, I didn't realise the T slot was not in the centre, but from this I will have no problem.

Thanks again Nobby

Matthew

HI Matthew
I can put it back on the machine now . I will have to brush up on my drawing.
Nobby

Nobby

your skills cant be that bad I managed to work it out, and thanks I hope its not to much trouble putting it all back together

Matthew
