Prior to creating this post ,I contacted two other experienced model engine makers and they were both of the opinion that there are 3 lengths of plug available,as I did. Clearly we were wrong and only short and long are the standard. I have several OS F for 4 stroke use and they are the same thread length as other "standard"plugs The longest plugs that I have are the Model Technics 4stroke type. They have the same thread length, but have a bar across the bottom.

I have always understood that the plug should be flush with the face of the combustion chamber and the use of different thickness washers are available to enable adjustment to take place. Also allows use of a long plug in an engine requireing a short plug.in an ermergency..

Thanks for the replies.

Keith

I am about 80% complete making a Jones .605 Glow engine, The notes suggest the use of a "long reach " plug and up to this point I have thought that long reach was a bit longer than the normal standard size. However, doing a seach for such a plug with model aero engine suppliers drew a blank ,but model car part suppliers do offer "long reach". I duly purchased two OS LC3 long reach plugs from a model car part supplier, only to find they are no different in length than the normal plugs in my possesion.

The Jones design is of late1970s vintage and I am now forming the opinion that in those days it was still a custom to mark plugs as long reach to mark them out from the short reach type used in small capacity,1cc and under engines. For whatever reason the model earo engine fraternity have dropped the use of the description"long reach"for the standard size plug, but the model car people still use it.

My contention ,therefore, is to say only two lengths of plug exist,- Short reach and the standard length, also known as long reach.

I am open to be corrected on this by any expert out there.

Keith

Hi Dean,

I have sent you a PM

Keith

Hi Andrew, Thanks for your comments. Thei Chernich drawings show both Mk1 and Mk2 and the liners are the same. Ron says the timing for both is the latest adopted by Mills.The transfer ports are two holes drilled radialy but on the same level

Keith

Hi,

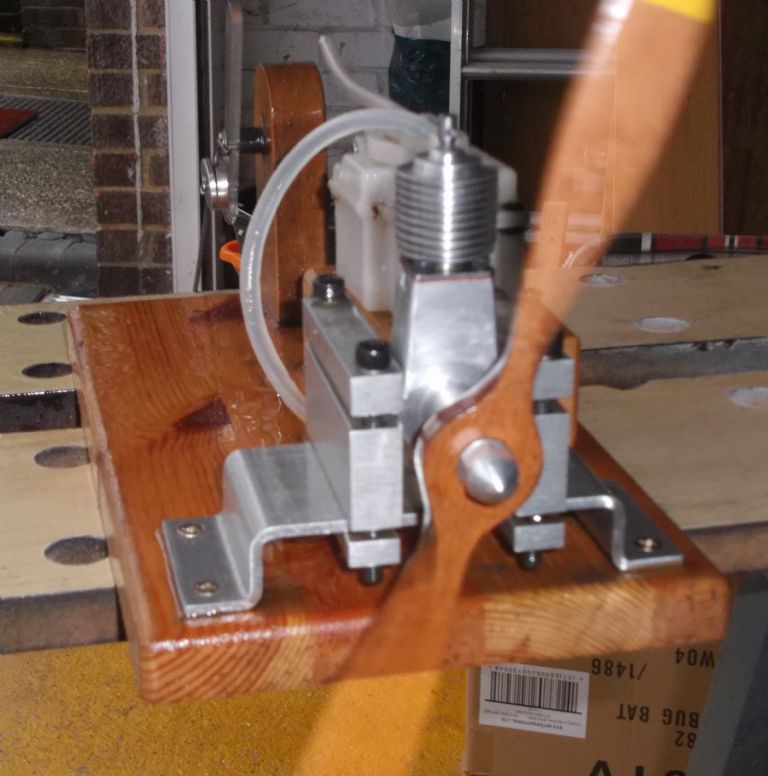

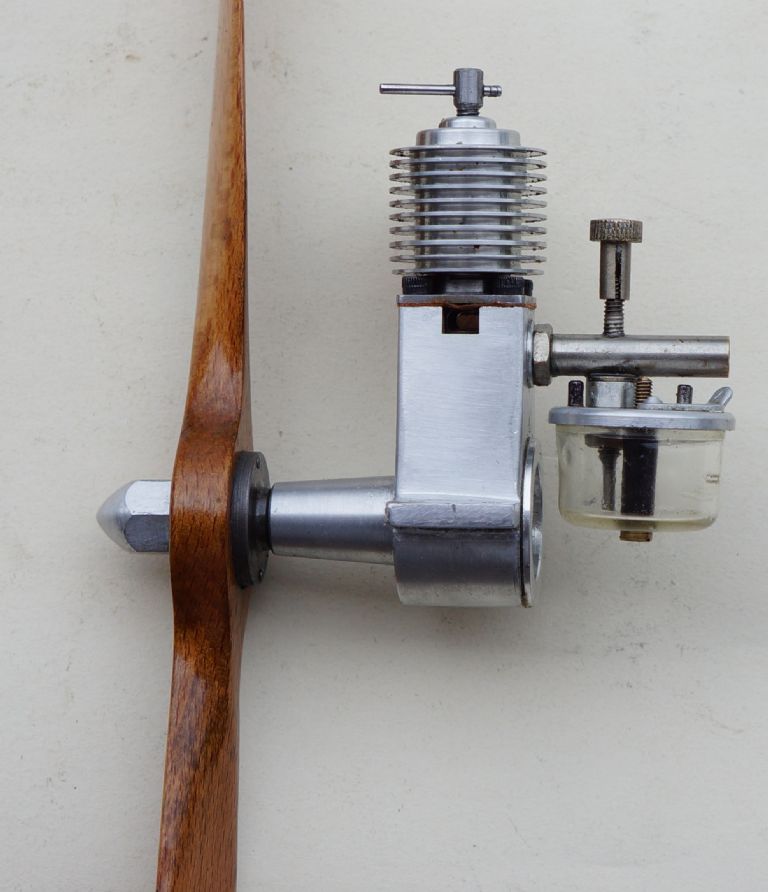

I have recently completed making the missing parts for the Mills 1.3cc and wonder if anyone else has made one from the late Ron Churnich drawings? It is always very satisfying to hear an engines first start up after completion and this one starts first flick after a prime and I suppose I should be happy with that, but after about an hours total running, it still will not run much over 6000 RPM,what ever prop is tried. The spec says 10,000 RPM.Compression is perfect and that nice "bouncy" feel when turned over.

I have a great respect for the contribution Ron made to our hobby, but in making this to his drawings and notes I had some doubts about a few things, but nevertheless followed his notes.He does say in the preamble to them that he has not copied the original engine exactly,thinking it would be unethical to do so with what has become a collectors item.He does not say what the difference is.

I think I found out the hard way,as I had an original crankcase and con-rod. When completed it would just about run on a prime, but was clearly not right,so after a strip down and a critical check on everything I realised that the datum top face to crankshaft centreline on the drawing was 0.100"lower than my crankcase and ditto with the con-rod. Clearly this had totally altered the timing and it was a wonder It ran at all.

Two other instructionsI I followed that seemed odd is he advised not to make the liner a tight fit in the crankcase"only an easy sliding fit as differential expansion will tighten thing up" A look at the section G/A shows that a leak path between ports is then a possibility. I compromised by having a push fit.The other query is with lapping the liner/piston fit, advising a taper of 0.0015" to TDC.For a piston under 0.5" diameter this seemed excessive and wasRemachining the crankcase was no problem, but the new con-rod made to the drawing was nothing like the original and is straight sided with no "dogbone" shape and would only just push in the piston with no room for movement. It also touched the crankcase. I re-made it in the same shape as the original. I also re-lapped the liner to give 0.0005" taper at TDC and"grew" the Meehanite piston by over 0.001" on diameter to allow re-lapping to that perfect ffit we strive for

When I think back,my fathers shed /workshop was probably supplied with electricity from the lighting circuit. He had run a lead covered cable along the fence from somewhere in the house. We did not have any 15 amp sockets. The Zyto lathe had a 1/3 HP motor and I do not remember fuses blowing.

Keith

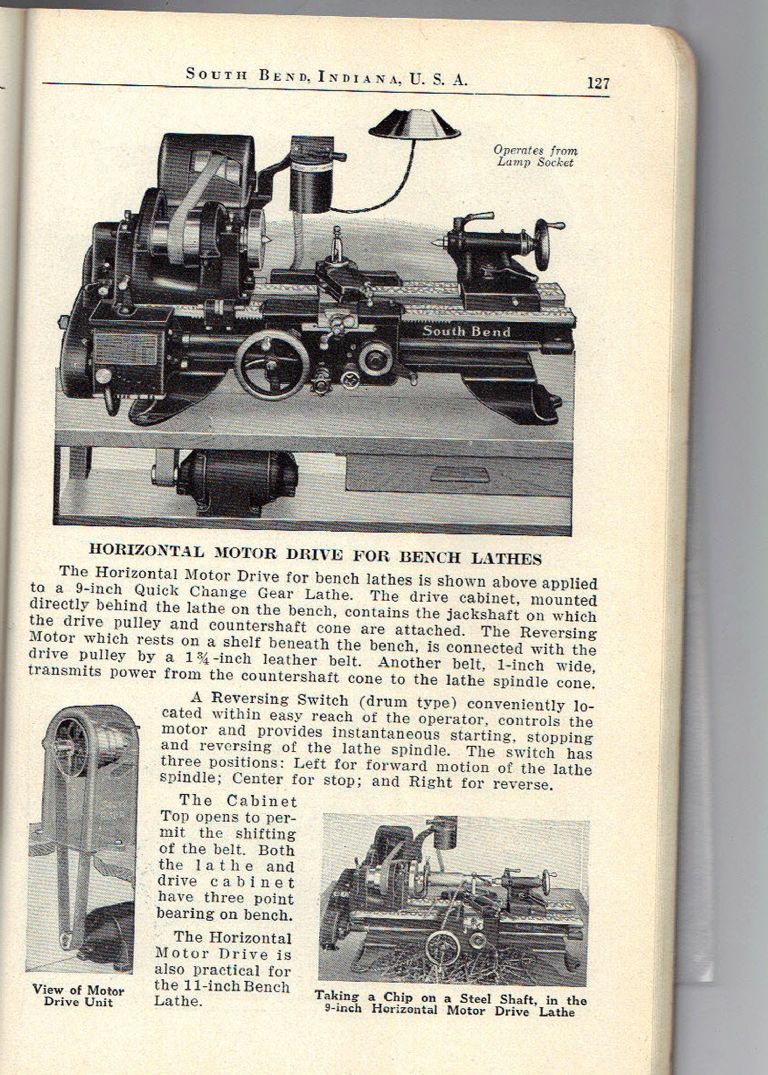

I recently found a South Bend instruction book, a 1932 publication aimed at "The Machinist Apprentice"The page I have scanned is interesting in that it shows and advises that the 9 inch(41/2 inch this side of the pond)lathe can be run from a light socket. No motor size is quoted, but it must be 1/2 horsepower at least, so I bet that uneathed wire got a bit warm!
