Final layout of internals

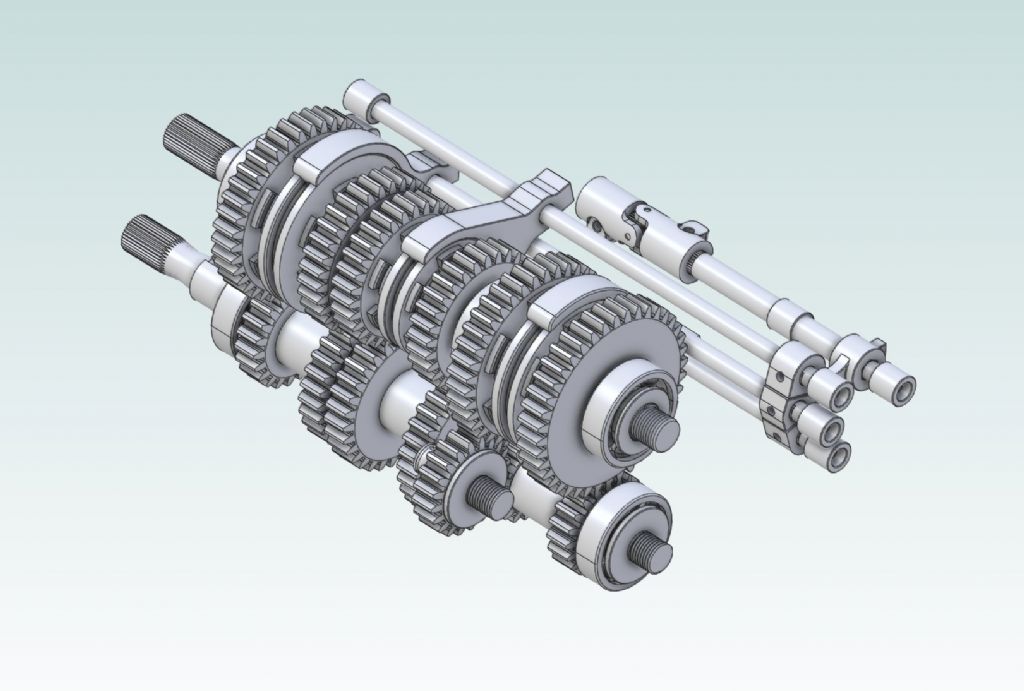

I think that I've finalised the layout of all the gearbox internals. This is a three-quarters left rear view. I've added splined shaft ends to the input (lower) and output shafts. Also, to ease construction, as it is only intended to be a semi-decorative piece, I've made the shafts with keyways instead of splines as in the original conception.

Uploaded by John Hinkley on 04/09/2019 16:54:13
