Mr C M McEke (a member of Bristol SMEE) provided this novel design for a complete drill sharpening fixture, which was featured in a free plan given away with MEW 17, June/July 1993.
Full details of how to construct the jig and advice on its use can be found in issue 17.
Download a full resolution PDF of side 1 here
Download a full resolution PDF of side 2 here

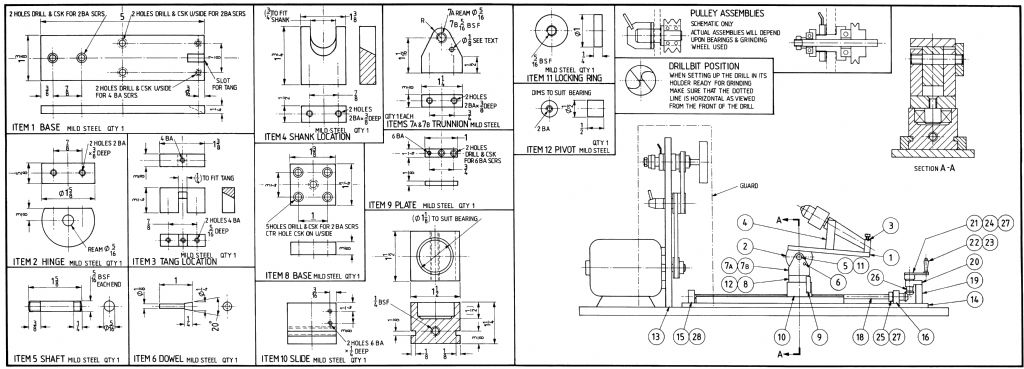

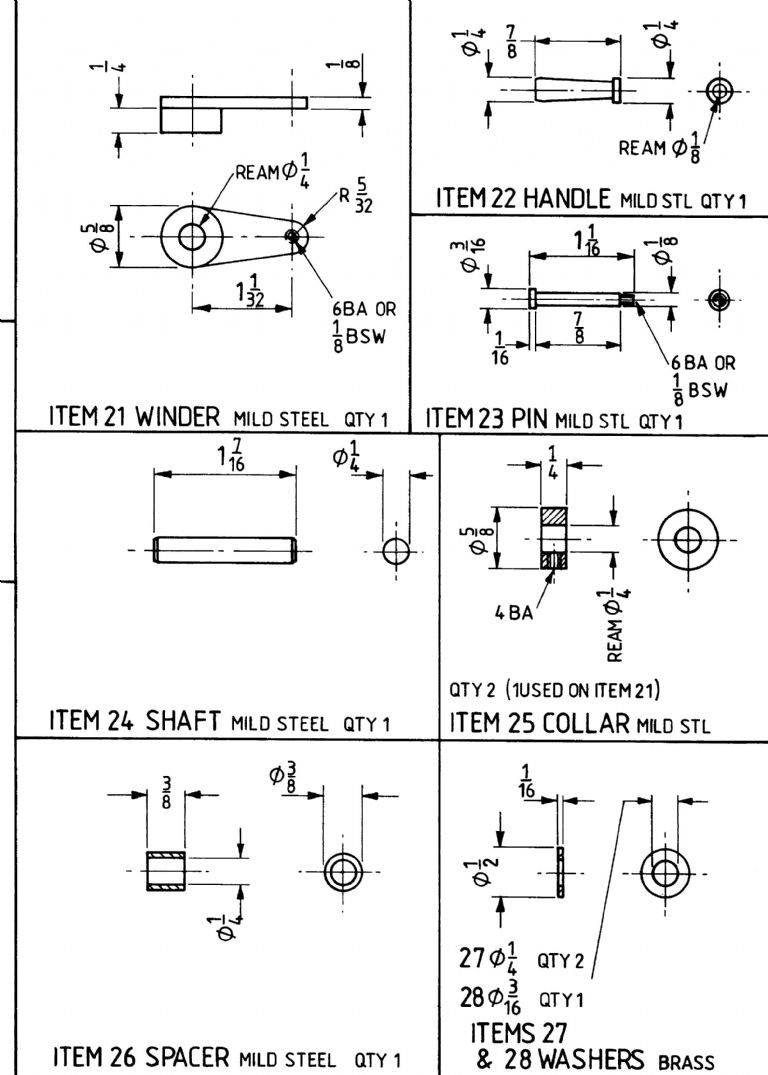

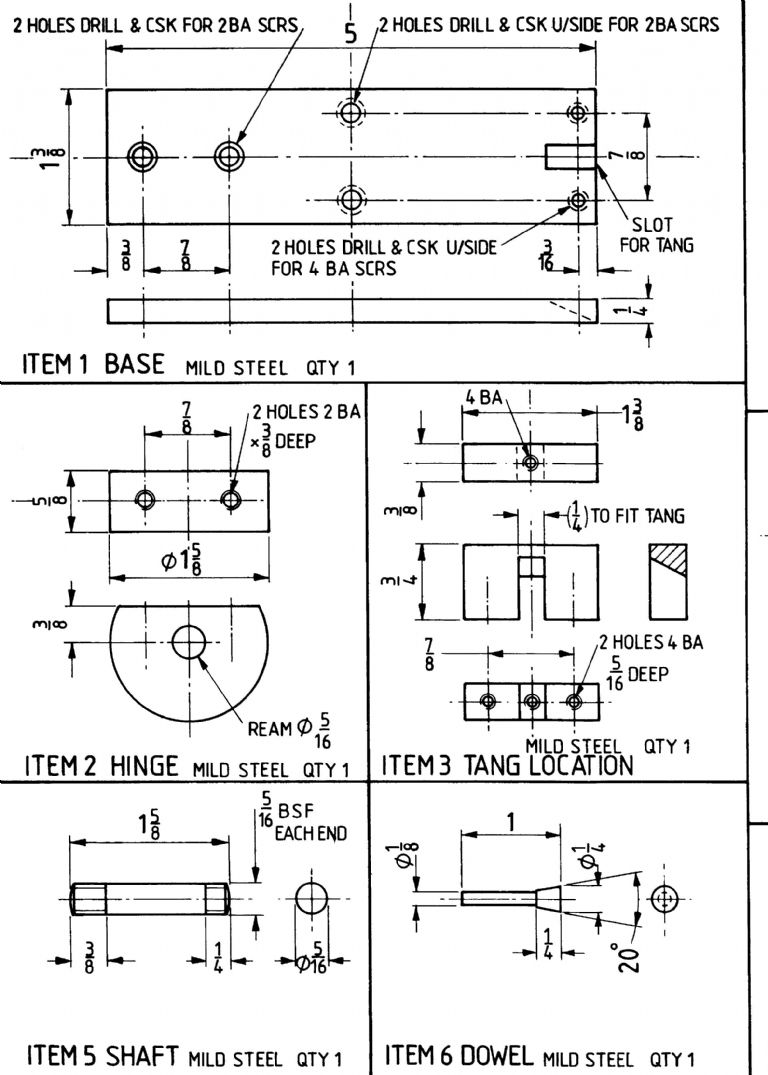

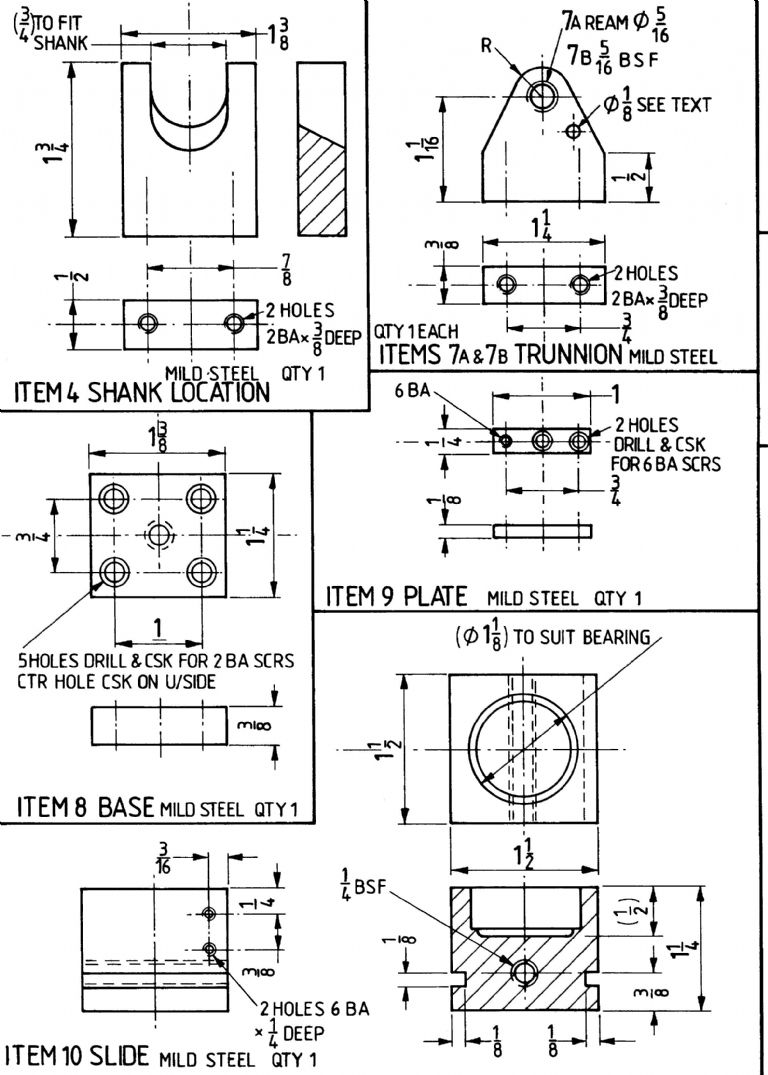

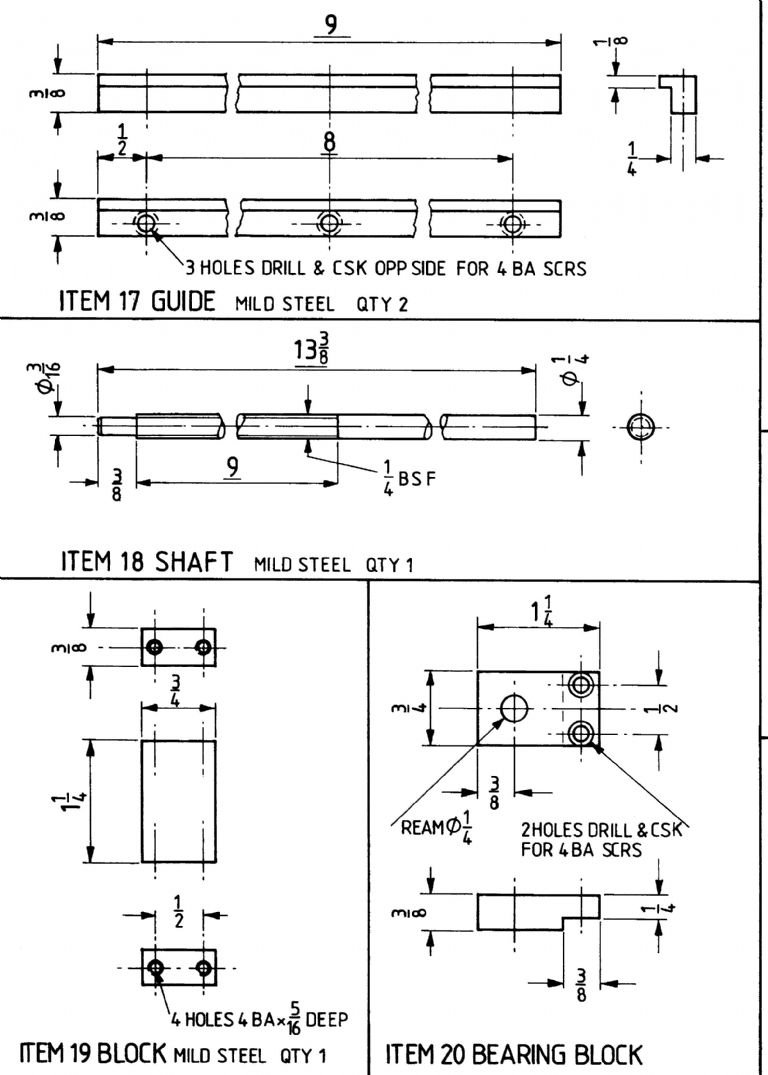

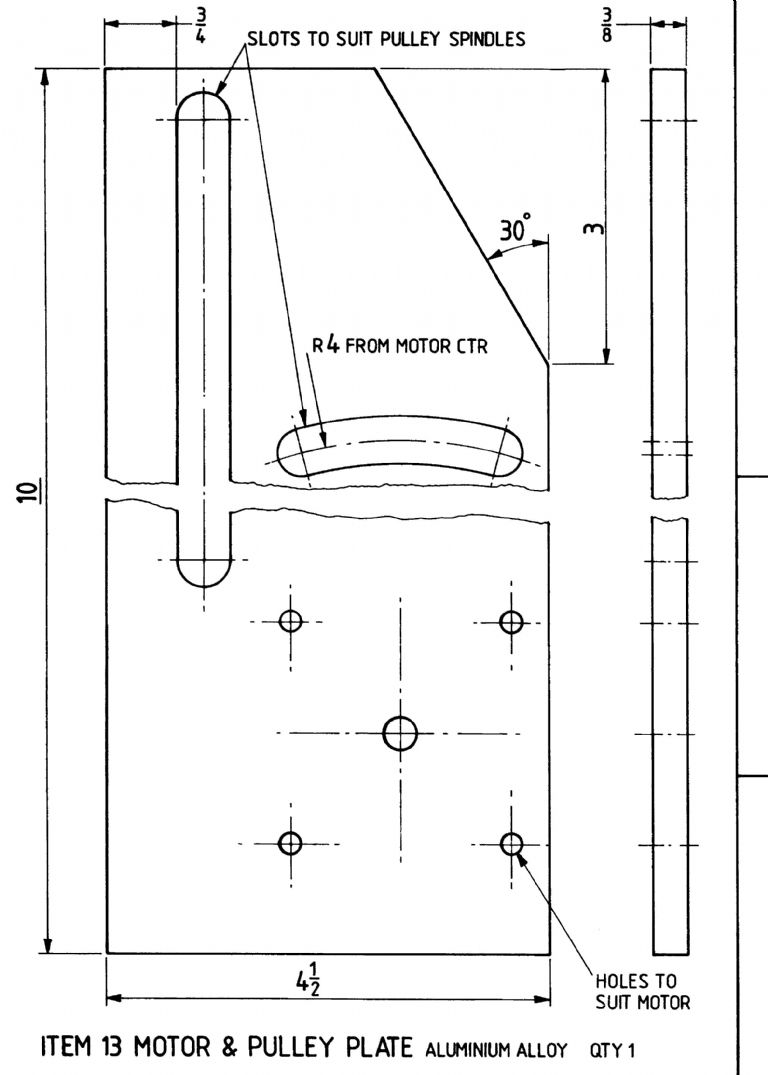

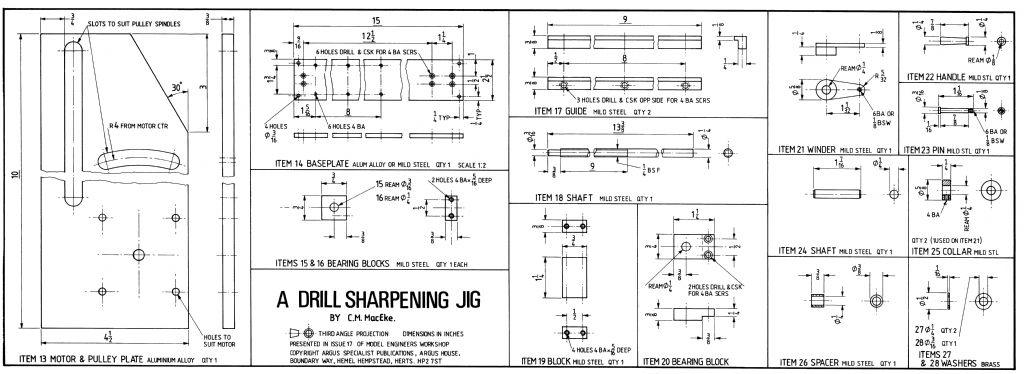

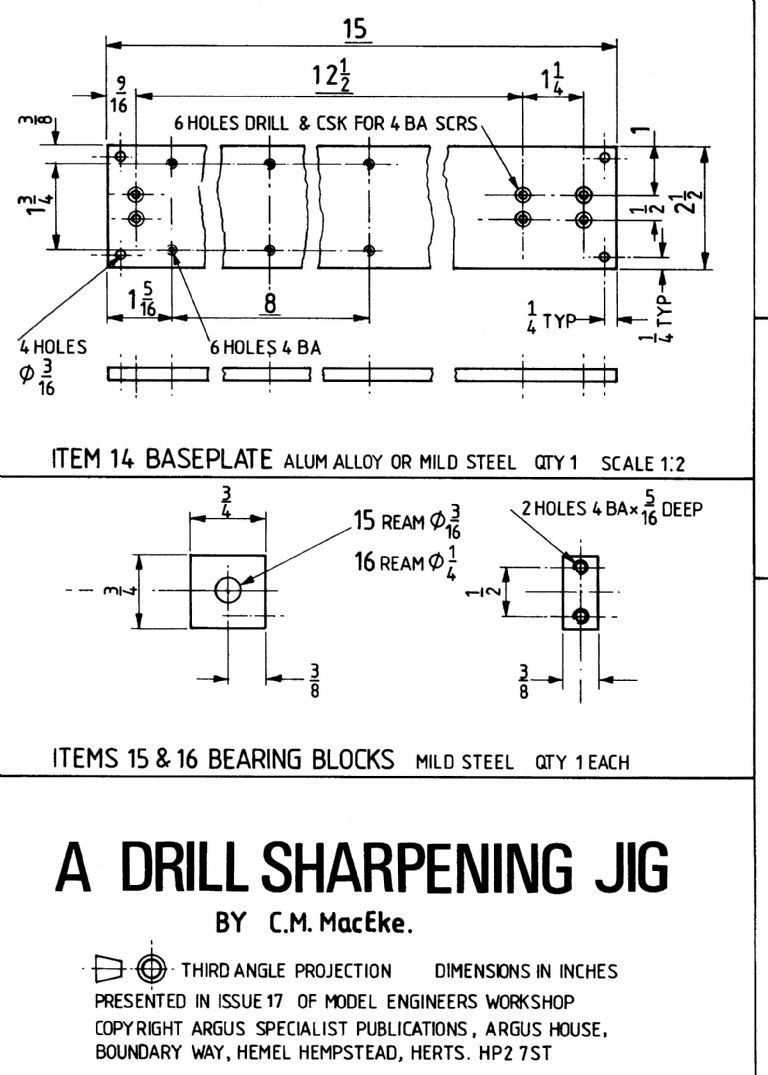

Right click the images below to open JPEGs of individual pages of the plan:
