Because the use of the device is not entirely obvious from  the drawings, in a departure from the normal approach, you can download the four pages of photographs and description. Right click and chose 'view image' to see a larger version:

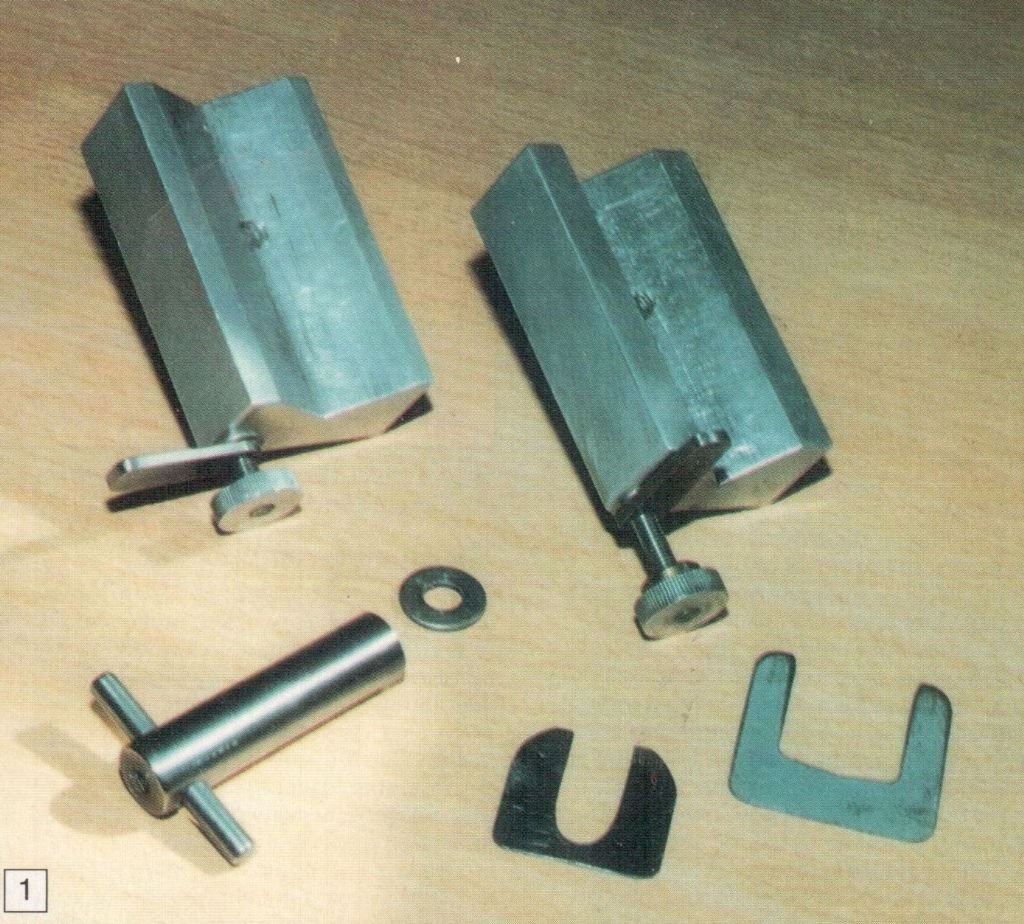

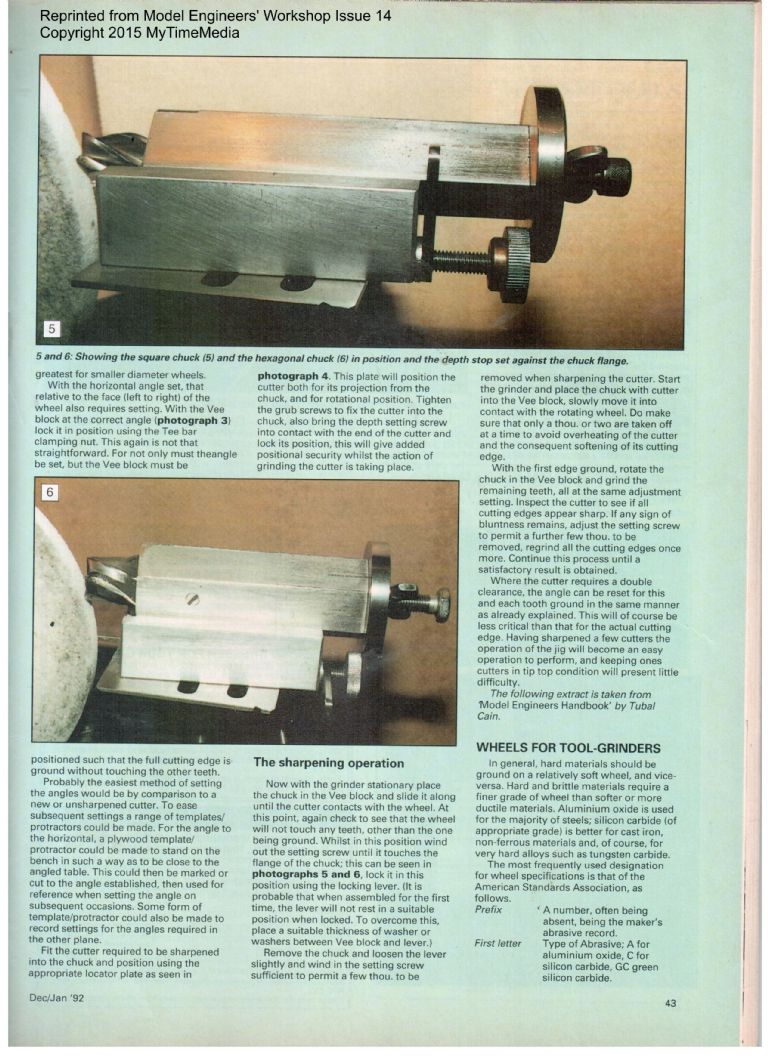

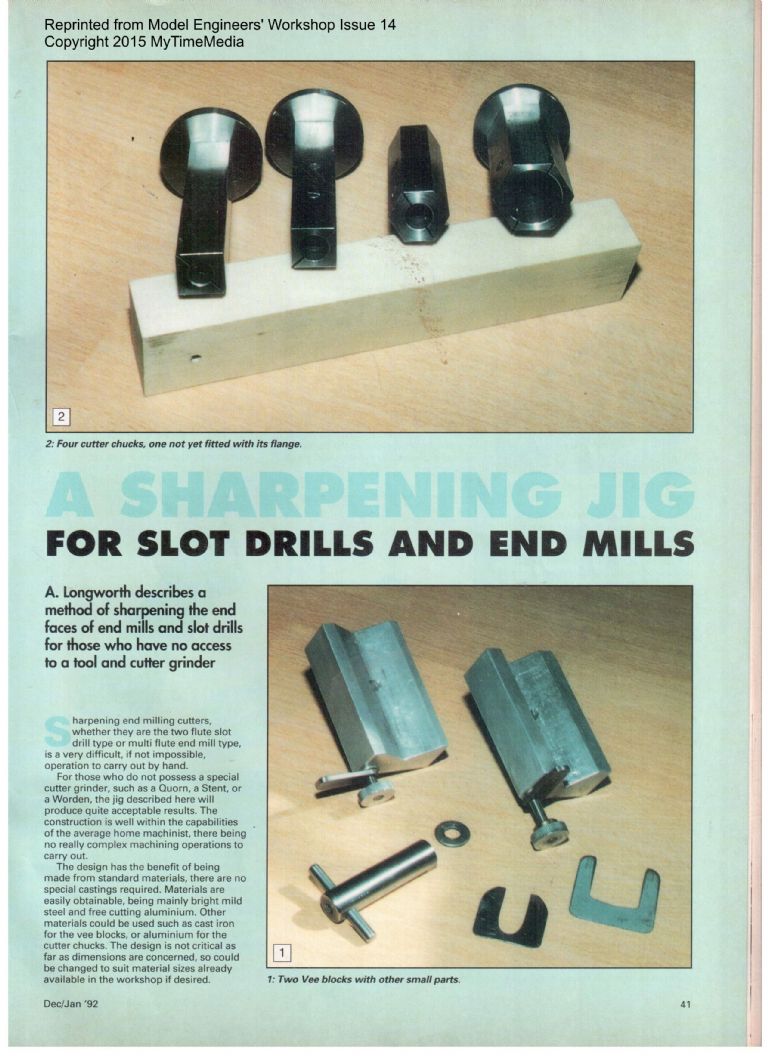

End Mill Sharpener Page 1

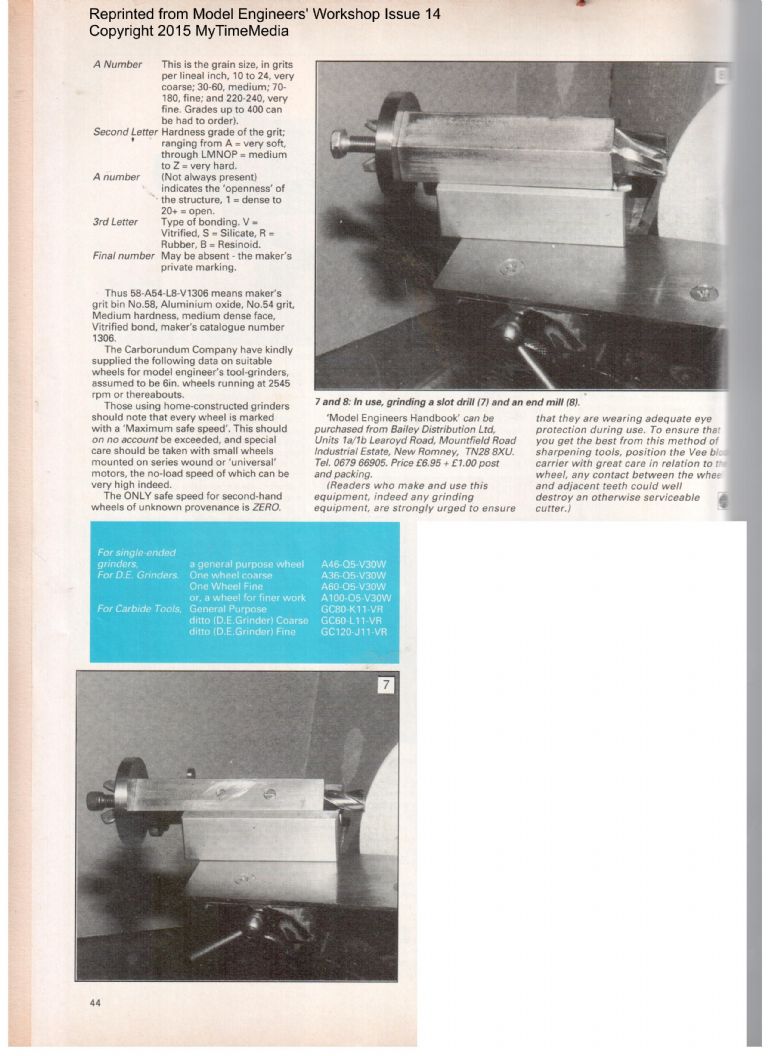

End Mill Sharpener Page 2

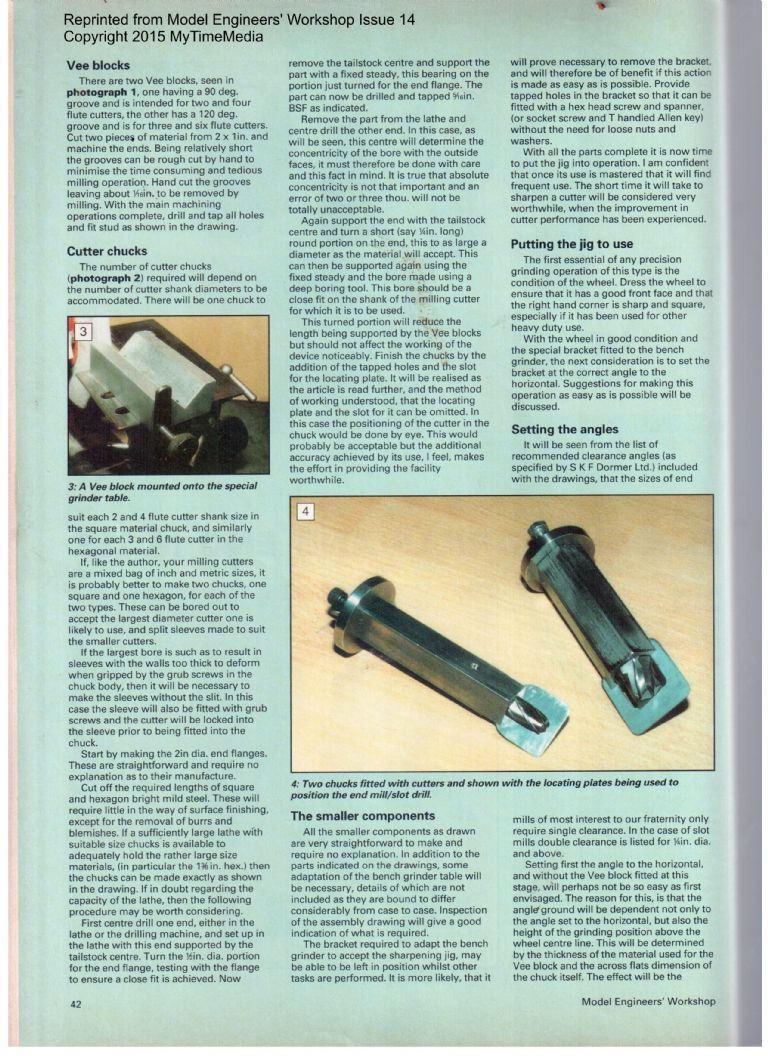

End Mill Sharpener Page 3

End Mill Sharpener Page 4

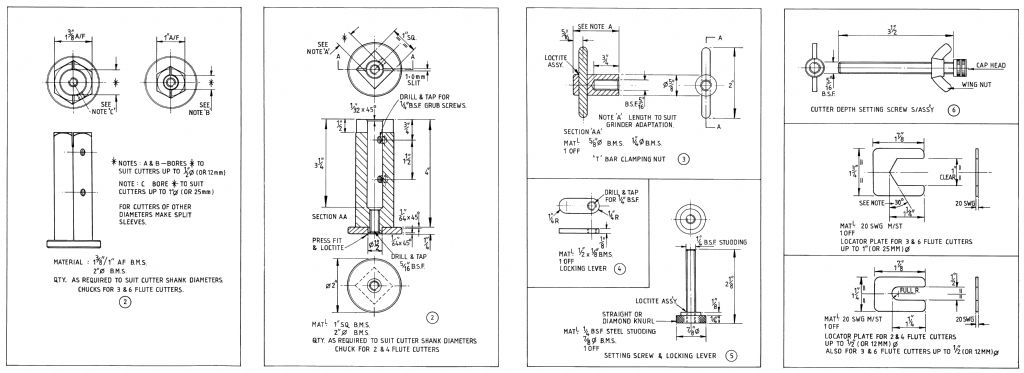

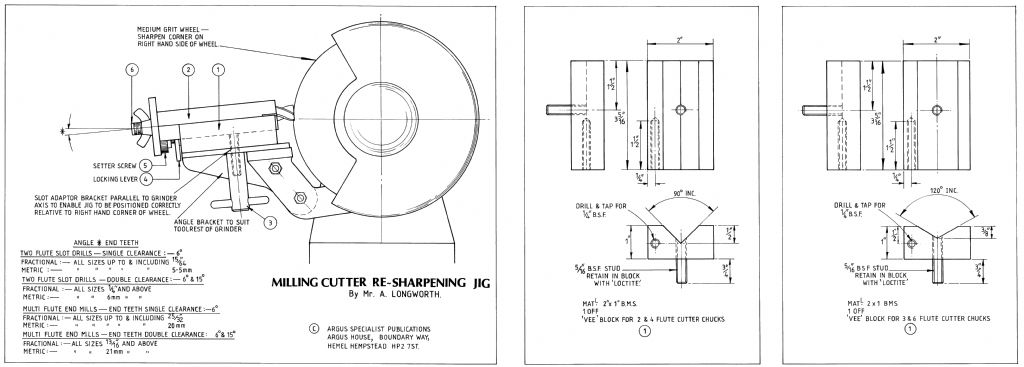

Milling Cutter Sharpening Jig plan side 1

Download Side 1 of the plan as a PDF HERE

Milling Cutter Sharpening Jig plan side 2

Download Side 2 of the plan as a PDF HERE



Thanks to Nick Farr for scanning and preparing this plan.

Enjoy!



N.B. We no longer provide individual pages as PDFs as Adobe Acrobat now includes the facility to print oversized pages as tiles on A4. In Acrobat choose 'Print' and then select the 'poster' option in the dialogue box.
