A Lathe Milling Attachment

By Neil Wyatt

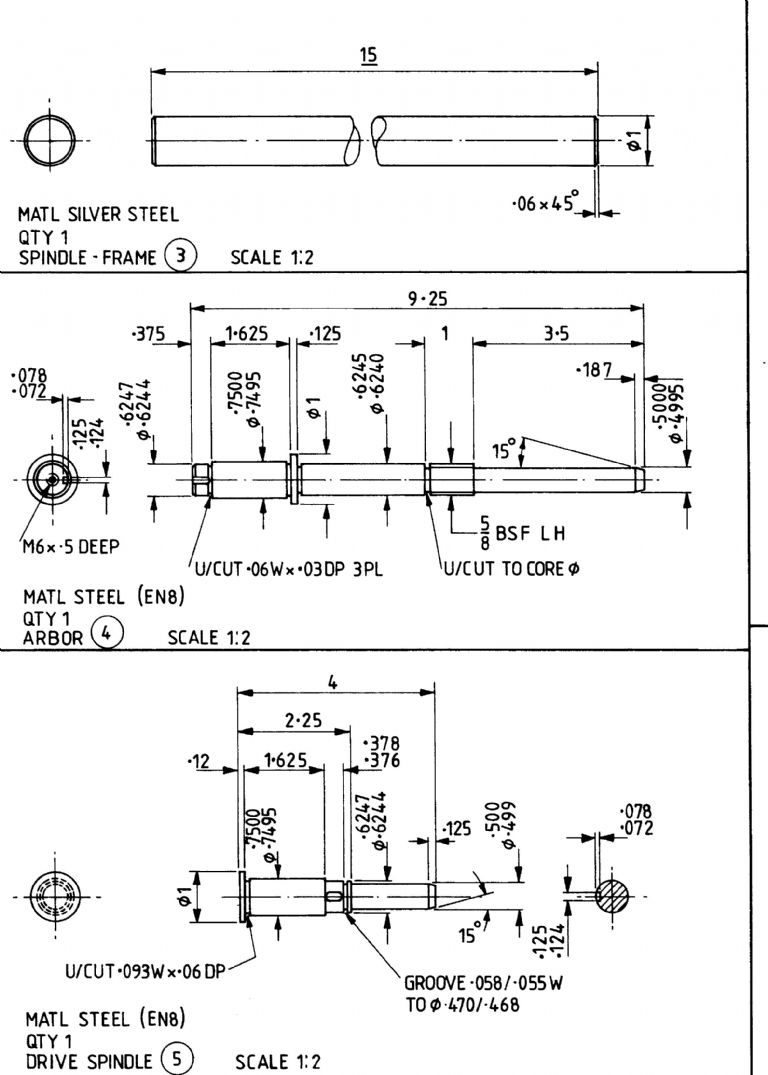

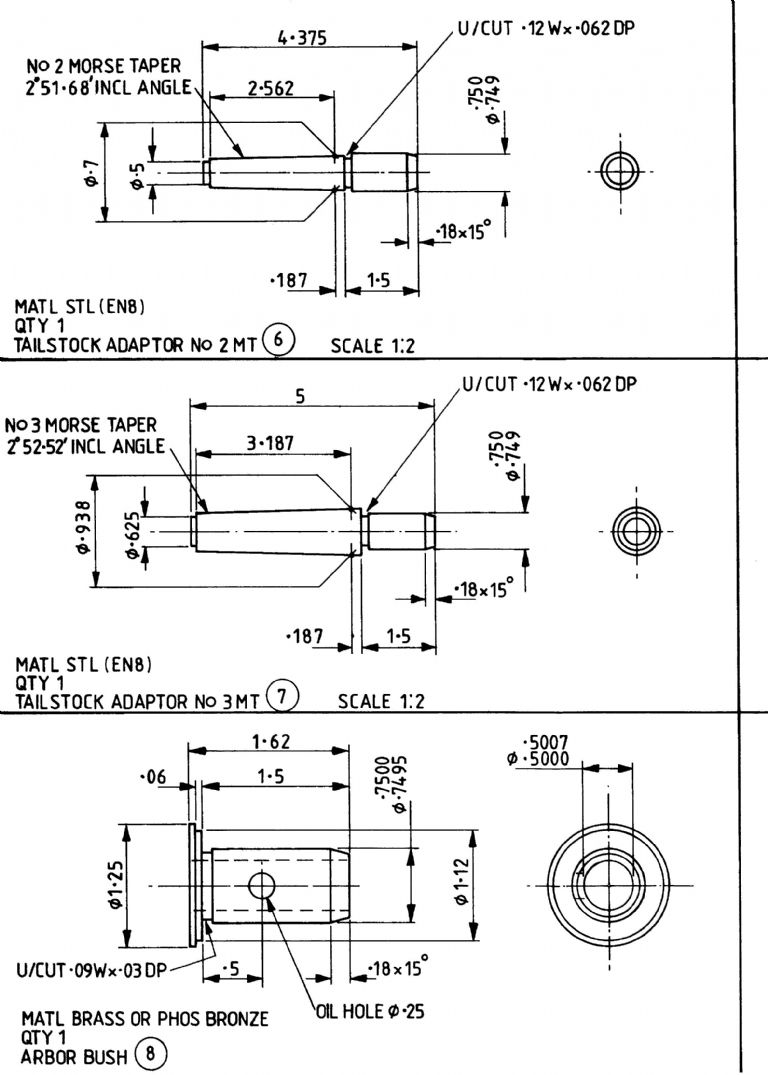

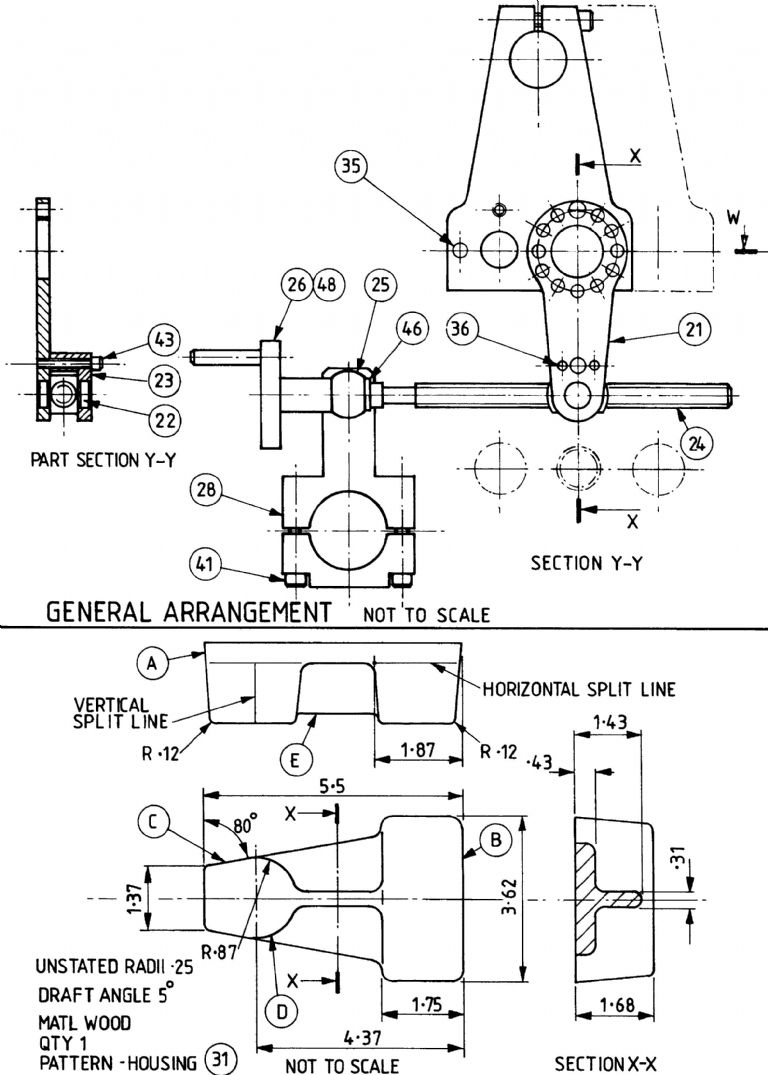

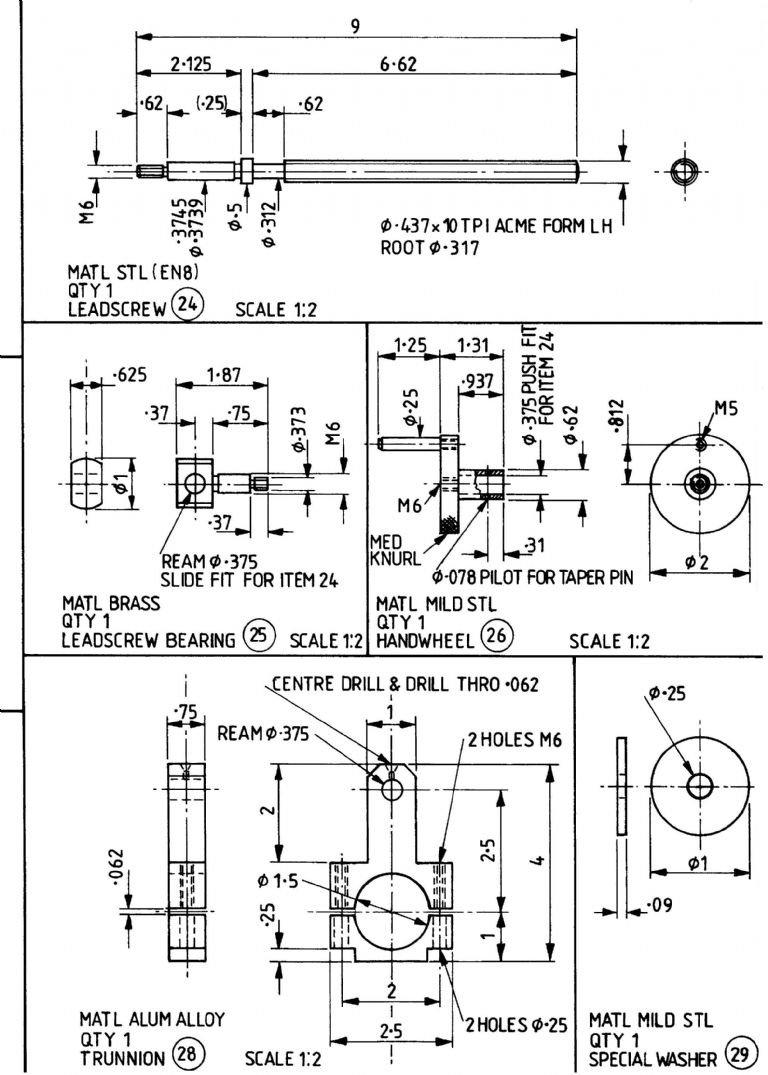

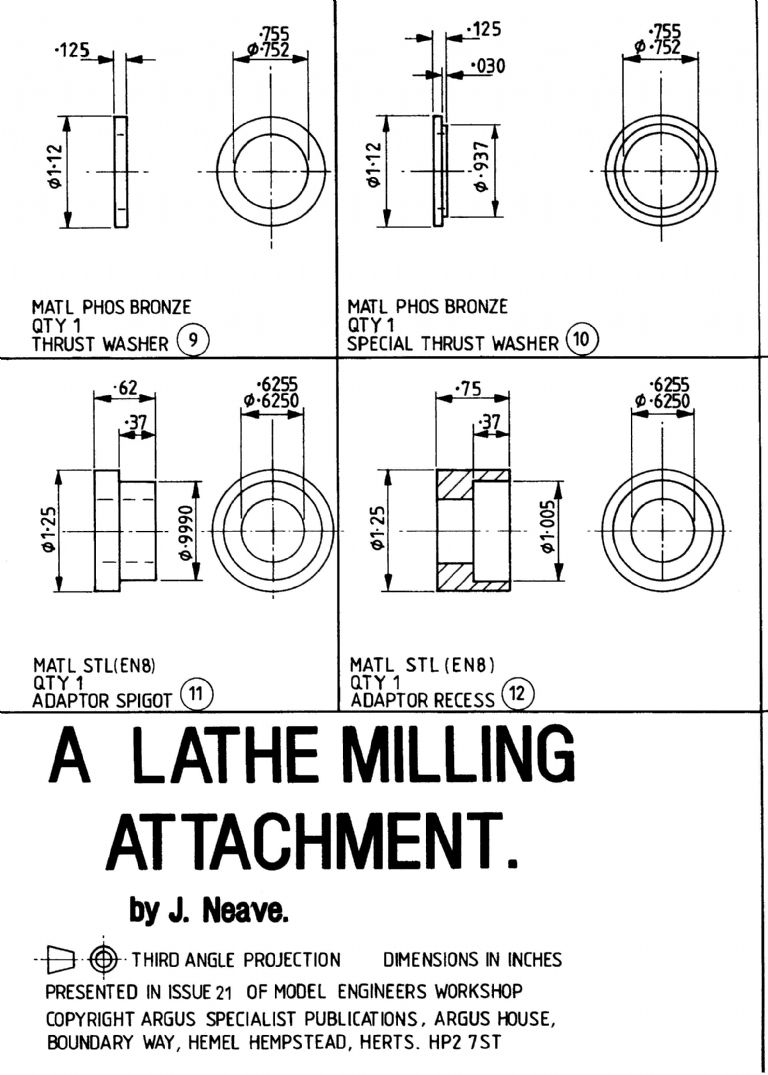

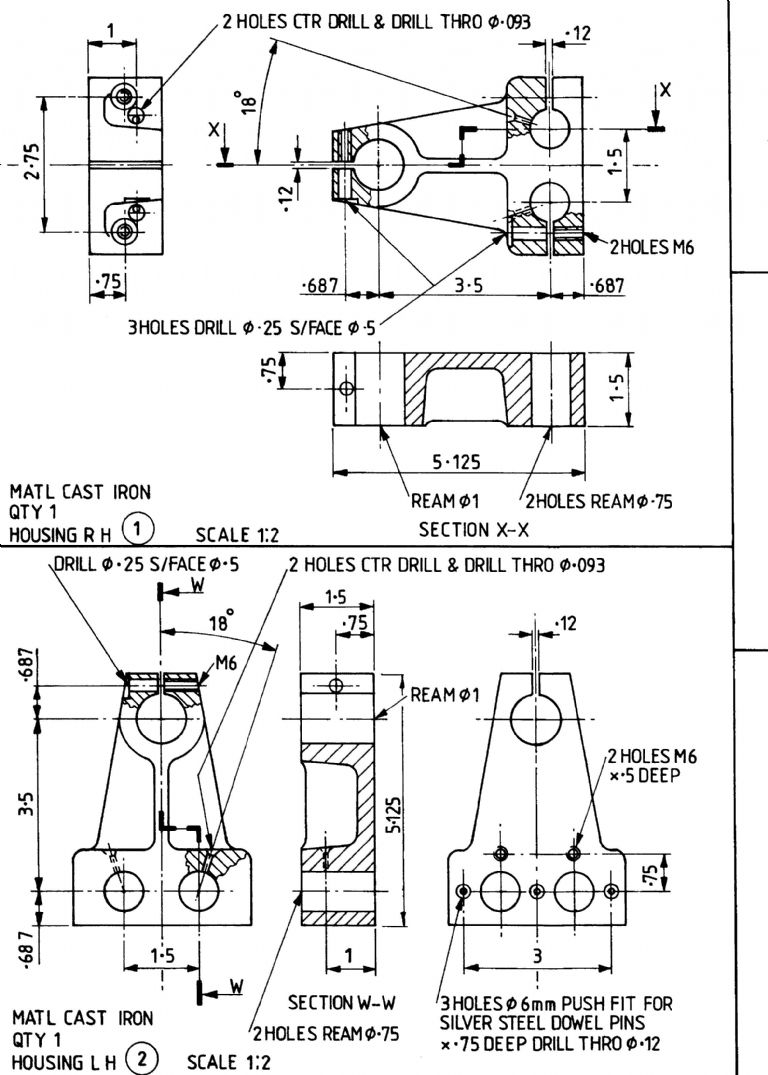

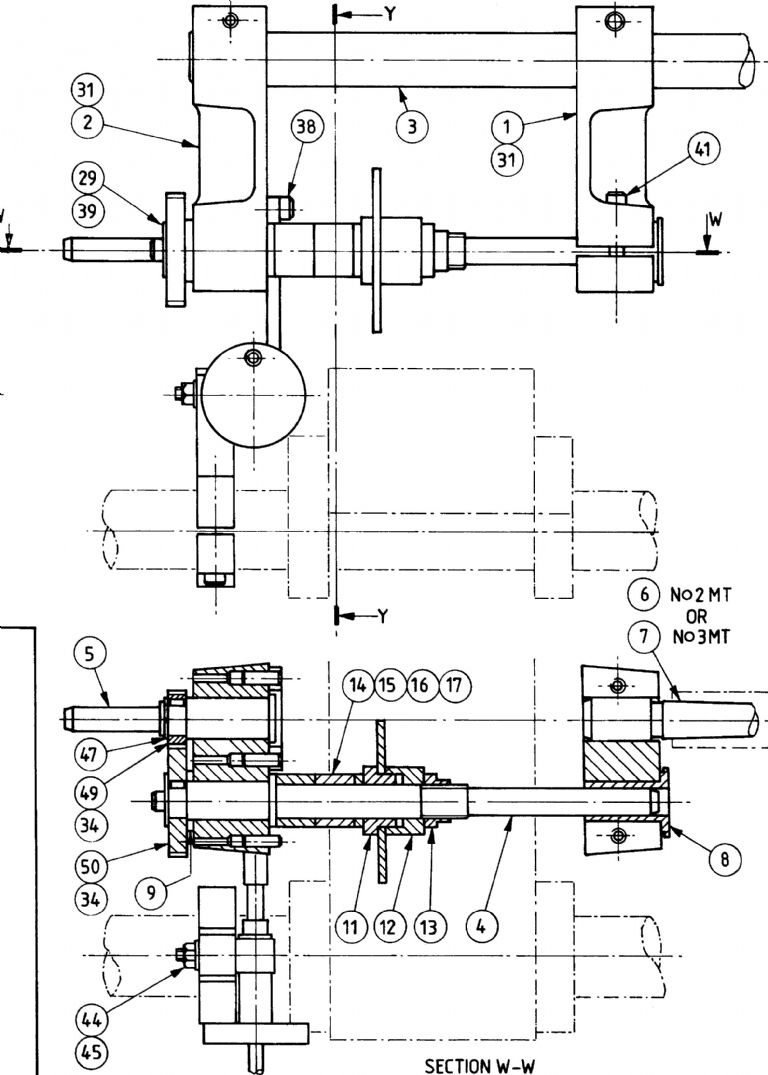

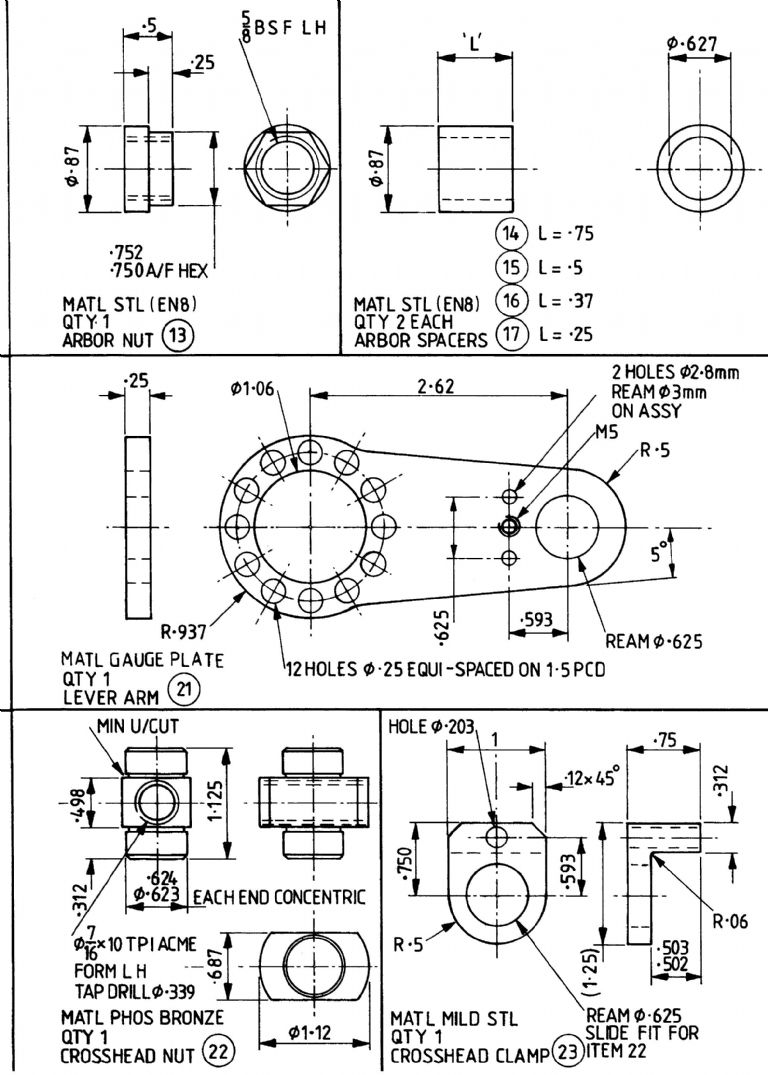

This horizontal milling attachment by J. Neave is designed to overcome the shortcomings of running a milling arbour between centres. The design used two castings but these could be replaced by triangular blocks of suitable material.

For full details, please see the article in issue 21 of MEW, January February 1994, available to digital subscribers in the archive.

Download individual pages as jpg images (right click and view):

Download sheet 1 as a PDF here.

Download sheet 2 as a PDF here.

Well, that's the complete set of free plans given out with teh first 21 issues of MEW. Thanks to Nick Farr for his marathon achievement in scanning all these plans and helping make them available again.
